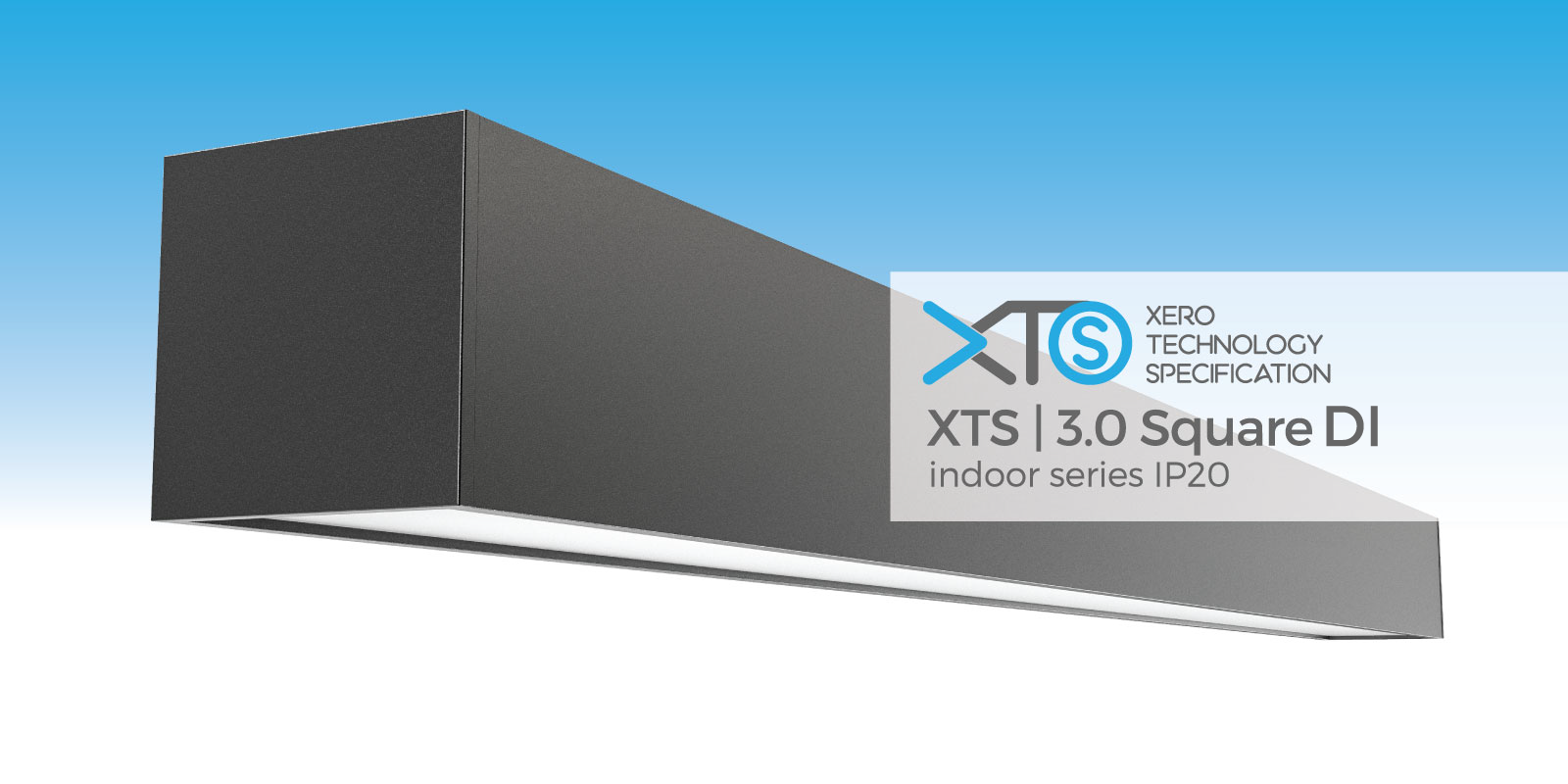

XTS | 3.0 Square DI

PRODUCT OVERVIEW

XTS 3.0 Square DI 80mm Wide x 88mm Highintegral gear continuous

The XTS | 3.0 series is an ideal specification profile with superior optics and removable gear trays that can be upgraded in the future. The XTS series offers 50mm incremental lengths using the Proformax Light engines

FEATURES
Xeroā€™s Proformax light engine with drivers come with 90Āŗ and 180Āŗ joiners that can be lit or unlit.
This allows a continuous ribbons of light without compromise.
All XTS products come with a 7 year standard warranty using Proformax light engine.

Go to xerolighting.com/warranty for more details

XTS 3 0 Square DI dimensions IMG

illustration shows optional screw-less endplate

Proformax S combined logo
DATA TABLE
Output
4ft Length
1120mm
Luminous Flux
(Delivered Lumens)
LO
1900
HO
3500
CRI 90+
Lumen Maintenance 82,000 hours (L80 B10 @ 35Āŗ)
Warranty Proformax / Proformax S 7 Years
Electrical Power Consumption Between 20 and 45w/m
Voltage input range 120 ā€“ 277V
Control methods Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Diming control DMX or DALI XI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 80mm W x 86mm H (3.149ā€W x 3.385ā€H)
Endplates Screwed End Plates (Standard) / Screw-Less End Plates (Optional)
Weight per metre 3.21kg (7lbs) average weight
Housing Aluminium Extrusion with standard silver powder-coat, black or white textured, (or) optional selected powder-coated finish
Upward diffuser Standard – Frosted acrylic lens | Optional – Asymmetric Lens / Extra Wide Beam Lens
Downward diffuser Frosted acrylic lens
Connections Polarised electrical connection between sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Field adjustable rollerball wire suspensions / rod suspensions / wall mounting /surface mount
Joiner options Lit corner 90Āŗ / Cross 90Āŗ / Tee 90Āŗ / Straight 180Āŗ join
Operating temperatures Proformax = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF)
Proformax S = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF)
Environment Dry indoor applications only
Minimum length adjustment Proformax = 50mm, Proformax S = 140mm
LED board types Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible
Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible
PENDANT LENGTHS
DESCRIPTION
PENDANT LENGTHS
total luminaire length in mm 572 852 1132 1412 1692 1972 2252 2532 2812 3092 3372
total luminaire length in inches 23 34 45 56 67 78 89 100 111 122 133
ā€˜560 board multiples 1 1.5 2.0 2.5 2.0 3.5 4.0 4.5 5.0 5.5 6.0
CONTINUOUS RUNS
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 3652 3932 4212 4492 4772 5052 5332 5612 5892 6172 6452
total luminaire length in inches 144 155 166 177 188 199 210 232 243 254 265
‘560 board multiples 6.5 7 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 6732 7012 7292 7572 7852 8132 8412 8692 8972 9252 9532
total luminaire length in inches 276 287 298 309 320 331 342 353 364 375 386
‘560 board multiples 12.0 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0 16.5 17.0
CUSTOM LENGTHS
Custom lengths are available in 50mm increments above the minimum pendant length of 572mm
Custom lengths for Proformax S are available in 140mm increments above the minimum pendant length of 590mm

The XTS | 3.0 Square Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTS | 3.0 Square is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light

L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

3000k_symbol4000k_symbol5000ktuneable-white_symbolcyanosis_symbolrgb_symbolrgbw_symbol

up_down_symboldown_symbolup_symbol

Ā  Performance Optional



DownĀ Optics

click on selection above to view larger image

rod-suspension double-wire-suspended rod-suspension wall-mount ceiling-mount
single-suspension_symbol split-wire_symbol rod-fixing_symbol wall-mount_symbol ceiling-mount_symbol

135_symbolcross-90_symboltee-90_symbolcorner-90_symbolceiling-to-wall_symbolcustom_symbol

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol

* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
