XERO is the innovation industry leader of linear LED lighting systems, with technological developments from the simplicity of installation, to unsurpassed product performance backed by the most comprehensive warranty. Our technologies evolve from interweaving product design with leading industry professionals, ultimately fuelling invention driven by experience. In this document you’ll learn about our key technologies that are interlaced throughout the DNA of our products. This insight will help understand why XERO is clearly the technological choice for the lighting professional.

Tool-less installation
The ease of speed without screws, tools or lost components whilst also avoiding accidental damage potentially caused by screwdrivers.

New Section 1.1 HR
tooless install HR 25

This truly unique innovation adopts our revolutionary cam lock for quick and simple ‘single person’ installation. The system is also ‘future proofed’ by having the ability to easily upgrade as LED technology rapidly advances.

Cam lock
Ingenious patented locking cam allows for ease of installing and removing the complete gear tray. This allows for both simple maintenance but also upgrading in the future.

Cam Lock merge 1 50 blend HR
crop in image 1

Download complete
Axis™ Gear Tray
information here

Introducing the Casambi mini interface, compatible with most Xero Linear Lighting profiles allowing users to control linear luminaires directly from a mobile device, using Bluetooth Low Energy (BLE) – the cutting-edge communication technology that’s built into every modern mobile device.

With a Casambi-ready lighting system, all the users needs to do is download the Casambi app to their iOS or Android device, and they’re ready to control all their light fittings. It’s made possible by tiny chips built into each fitting, which can communicate directly with mobile devices via Bluetooth.

The high-tech devices that we all carry with us today are ideal tools for controlling lighting. Touchscreens, advanced computing power and high-speed connectivity make them ideal for tasks like commissioning lighting when it’s installed, setting up preset scenes and animations, or controlling colour.

Features Interface which can convert a WIRELESS CASAMBI signal into a 0/1…10 V signal.
Class II protection against electric shock for direct or indirect contact.
The converter can be powered directly from the mains (100 – 240 VAC).
Operation Mode WRGB mode: 4 x 0/1-10V (4 x 10mA max) independent (CH1…4)
TW mode: 2 x 0/1-10V (2 x 10mA max) independent (CH1-2).
Rated Voltage 100 – 240 V
Frequency 50/60 Hz
DC Operation range 176 – 264 V
AC Operation range 90 – 264 V
IP Rating IP20
Weight 60gms / 2.07 oz

For more information on the Casambi control system speak to with your local Xero Linear Lighting Regional Specification Representative by going to xerolighting.com/contacts

Download
Information
sheet
here
PDF symbol

Linear lighting perfection has been realised, introducing patented Con-Seal™. The typical industry ‘extrusion + flat end plate’ has been superseded by our precision engineered endcap, complete with ‘magnetic snap’ cover plate that’s nothing short of impressive.

CON SEAL 1

Download
complete Conseal™
information here

LOW UGR ICON1

Xero’s Low UGR  microprism diffuser – ‘Plexiglass’ represents the most effective method of distributing the diffused light into the working space to reduce glare and meet the criteria of the UGR ratings. The soft diffused light creates a productive and sustainable working environment for the office and educational precincts.
The luminaire using the Low Glare UGR PlexiGlass light source ranges from the LED light source generates the light with its correlated colour temperature of 3000K to 5000K that achieves the colour rendering index of CRI 80 & 90.

LOw UGR IMG for Xero Tech page
Low UGR
Presenter
play button IMG
Low UGR
Information
Overview
PDF symbol
NANO X Logo purple

NanoX is a synthetic hydrophobic surface-applied product that causes water to bead up and run off the luminaire lens and glass surfaces.
This in turn stops build up of dust, dirt, grime and bugs on the applied surfaces allowing for easy wipe of and cleaning

NanoX diagram
View video
here
play button IMG
Download NanoX
Q&A information here
PDF symbol
PROFORMAX 1 Logo

FEATURES

High performance Samsung LED
with proven high performance.
World’s best efficacy with phosphor
conversion technology.
Low Anti-sulfurisation technology • for
long term reliability.
High Advanced flip-chip with reflective
layer-formation.
EMC packaging outperforms
traditional PPA/PCT materials.

Download the specification
sheet including Melanopic ratios here
Proformax Datasheet
proformaxtw
porformax1

FEATURES

2700 – 6500*K – DALI DT6 or DT8 control options

High performance Samsung LED
with proven high performance.
World’s best efficacy with phosphor
conversion technology.
Low Anti-sulfurisation technology • for
long term reliability.
High Advanced flip-chip with reflective
layer-formation.
EMC packaging outperforms
traditional PPA/PCT materials.

porformax2
Download the specification
sheet including Melanopic ratios here
Proformax Datasheet
ProformaxRgbw logo

Proformax 50RGBW

Proformax RGBW 50mm

Proformax 100RGBW

Proformax RGBW 100mm

Proformax 280RGBW

Proformax RGBW 280mm

FEATURES

  • Standard combined output 5600 Lm/m *
  • Ultra combined output 8000 Lm/m *
  • Anti-sulfurisation technology for long term reliability
  • Aluminium PCB with Molex connectors
  • Combined theoretical output with all channels at full,
    excluding active power limiting
Download the
specification
sheet here
Proformax Datasheet

The smart suspension system that can be mounted on any surface, whether a flat or sloped ceiling, or even a wall. Height adjustment is done at the luminaire for fine tuning close to the ground. The flexibility of luminaire location allows complete freedom of lighting design.

Profile Open 1
New Hanging Pos 2
New Hanging Pos 1

Download complete
Rollerball Suspension™
information here

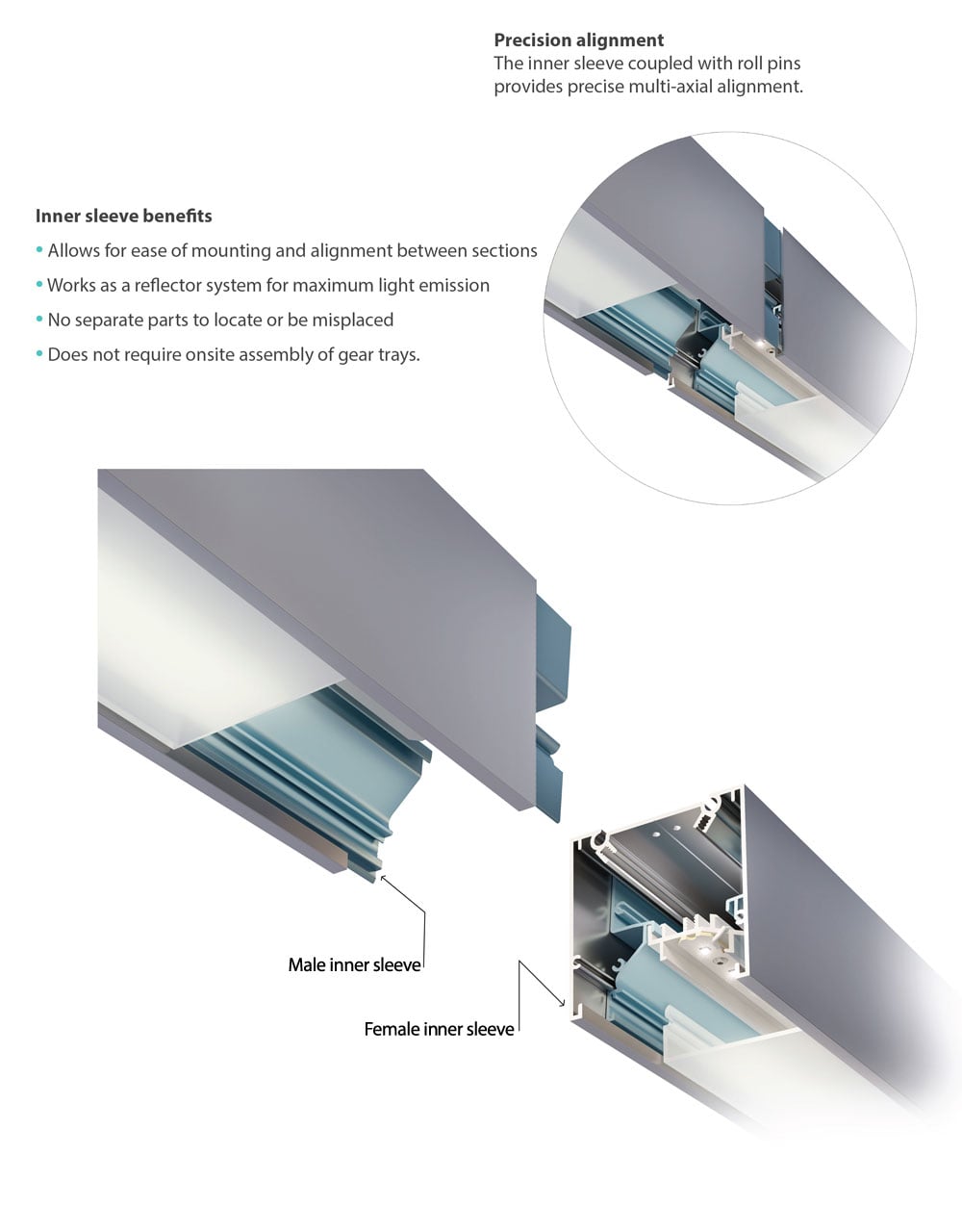

Our patented joining system is not only the fastest in the market, it incorporates LUMI-SEAL™ for a complete ‘light leak free’ join. Its multiple benefits for both installer and client’s project sets it apart from the rest, reaching a new pinnacle of linear lighting.

SPEED CONNECT2

Download complete
Speed-Connect™
information here

LED technology has rapidly advanced over the last decade with criteria of quality & quantity of light, efficiency, life and cost. The XERAMIX™ philosophy is targeting performance well within nominal specification to create luminaires in a class of their own.


Xeramix 1 LED Modules
Performance Overview Brochure Here
Download complete
Xeramix™
information including Melanopic ratios
Xeramix R insert

Download
Complete
XeramixR
Brochure
