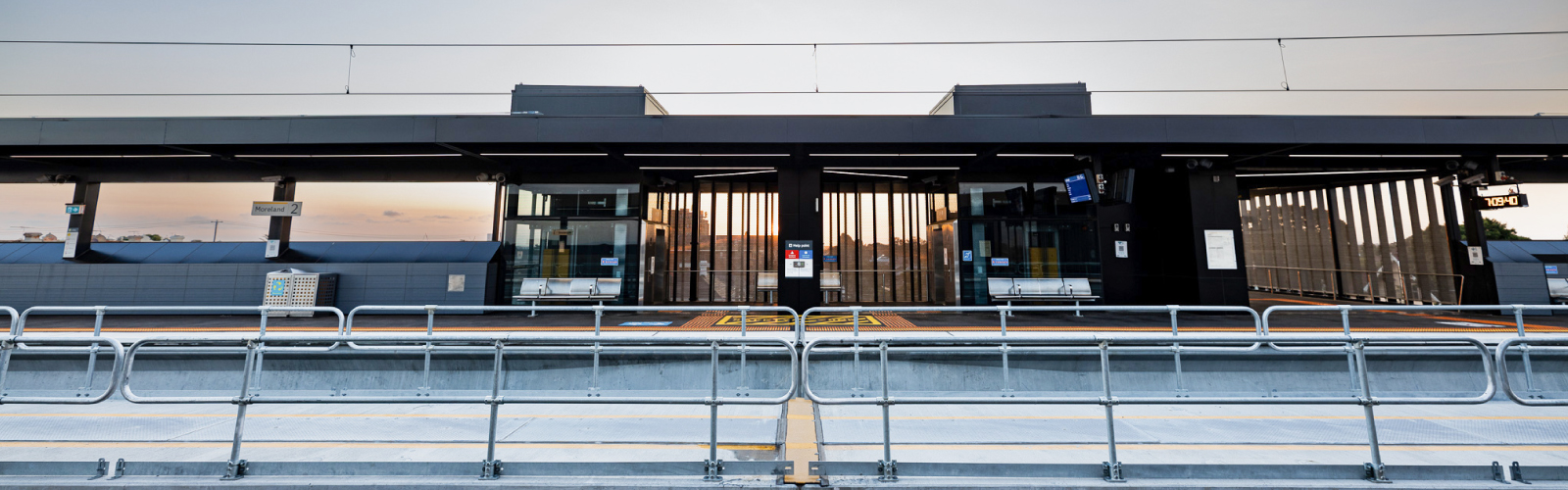

Project: Morland Station | Melbourne VIC
XTI | 3.0 WF Recessed (wide flange) IP66 IK11
Project: Morland Station | Melbourne VIC
PRODUCT OVERVIEW
XTI 3.0 WF Recessed (wide flange) IP66 IK11 Size: 80mm High x 80mm Wide (including flange 116mm Wide)integral gear continuous
The XTI series is an IP66 / IK11 profile that is capable of 50°C ambient locations and, with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output |
4ft Length 1120mm |
Luminous Flux (Delivered Lumens) |
LO 1900 |
HO 3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance | 114,000 hours [L90 B10 @ 50°C] | ||||
| Proformax Proformax S |
CRI | 80+ | |||
| Lumen Maintenance | 82,000 hours [L80 B10 @ 25°C] | ||||
| 24V RGBW System | Dual Row ( DALI / DMX Dimming ) | ||||
| Warranty | Xeramix | Xeramix 1 = 10 years, Xeramix R = 15 Years | |||
| Proformax / Proformax S | 7 years | ||||
| 24V RGBW | 3 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI / Dimming options for RGBW; DALI, DMX | ||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 80mm Wide (including flanges 116mm Wide) x 80mm High | |||
| Weight per metre | 4.3kg (9.47Ibs) average weight | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Diffuser | Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Louvres available in White, Black, or Silver |
||||
| Connections | Optional polarised electrical connection between sections. Power feed through end-plate or rear of housing. An additional minimum 45mm is required for gland and flex to turn through 90º | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||||
| Mounting | Recessed Flange Mounted, Sliding Thread Stud Bracket, Sliding Surface Mounting Plate, Wire Suspension Kit | ||||
| Joiner options | Joiners available for interconnection | ||||
| Operating temperatures | Xeramix = -25ºC to 50ºC (-13ºF to 140ºF) 24V RGBW – (20ºC to 35ºC) Proformax = -25ºC to 35ºC (-13ºF to 95ºF) Proformax S = -25ºC to 35ºC (-13ºF to 95ºF) |
||||
| Environment | IP66 (not in direct sunlight) (diffuser must not face upwards) | ||||
| Minimum length adjustment | 25mm | ||||
| LED board types | Xeramix 1 and Xeramix R Boards and drivers in 25mm compatible / 100mm 280mm and 560mm Zhaga lengths Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||
| IK rating | IK11 | ||||
| Vandal-proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental plugs / Thermal throttle / IOT connectivity | ||||
|
DESCRIPTION |
LENGTHS |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 578 | 858 | 1138 | 1418 | 1698 | 1978 | 2258 | 2538 | 2818 | 3098 | 3378 |
| total luminaire length in inches | 23 | 34 | 45 | 56 | 67 | 78 | 89 | 99 | 111 | 122 | 133 |
| ‘560 board multiples | 1.0 | 1.5 | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 4.5 | 5.5 | 6.0 |
CUSTOM LENGTHS
Custom lengths Xeramix = 25mm / Proformax = 25mm / Proformax S = 140mm
The XTI | 3.0 Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTI | 3.0 is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light that comes from Xero’s exclusive patent ‘SpeedConnect’ System
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50˚C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.
Down Optics
*
*
*
>
>click on selection above to view larger image Note: All Louvres are behind a clear polycarbonated cover
Unlit butt bends only
* Other options including custom colour matching available on request
