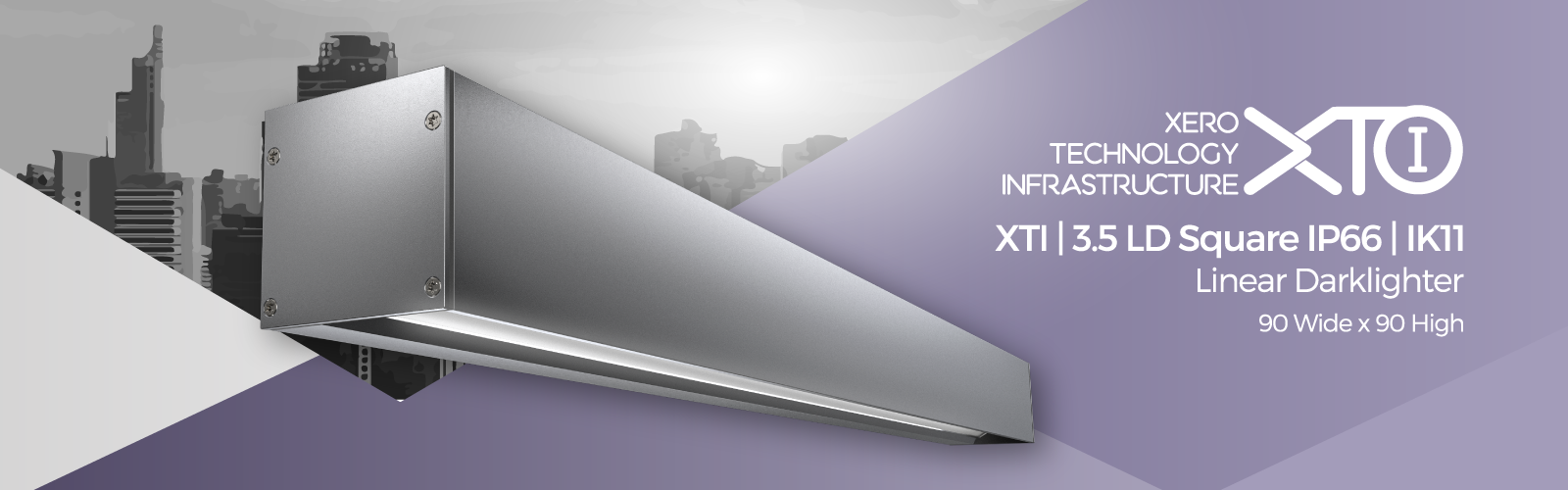

XTI 3.5 LD Square (Linear Darklighter)
PRODUCT OVERVIEW
XTI 3.5 LD Square (Linear Darklighter) – Size: 90mm Wide x 90mm Highintegral gear continuous
The XTI series is an IP66 / IK11 profile that is capable of 50ĀŗC ambient locations and, with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance | 114,000 Hours ( L90 B10 @ 50Āŗ ) IM hours (L70 B10 @50ĀŗC) | ||||
| Proformax Proformax S |
CRI | 90+ | |||
| Lumen Maintenance | 82,000 Hours ( L80 B10 @ 25Āŗ ) | ||||
| 24V RGBW System | Dual Row ( DALI / DMX Dimming ) | ||||
| Warranty | Xeramix | Xeramix 1 = 10 years, Xeramix R = 15Years | |||
| Proformax / Proformax S | 7 years | ||||
| 24V RGBW | 3 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m (3.28 feet) | |||
| Voltage input range | 120 ā 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Diming control DMX or DALI XI / Dimming options for RGBW; DALI, DMX |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 90mm Wide X 90mm High | |||
| Weight per metre | 3.21Kg (7.02lbs) average weight | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Downward Diffuser | Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser / Louvres available in White, Black, or Silver | ||||
| Connections | Optional polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable Rollerball Wire Suspensions / Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting | ||||
| Joiner options | Unlit butt Joins only 90Āŗ / Straight / 180Āŗ | ||||
| Operating temperatures | Xeramix -25ĀŗC to 50ĀŗC 24V RGBW – (20ĀŗC to 35ĀŗC) Proformax = -25ĀŗC to 35ĀŗC Proformax S = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF) |
||||
| Environment | Luminaire 1P66 (Not in direct sunlight, diffuser must not face upwards). | ||||
| LED board types | Xeramix 1 and Xeramix R boards and drivers in 25mm compatible / 100mm 280mm / and 560mm Zhaga compatible Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||
| IK rating | IK11 | ||||
| Minimum length adjustment | 25mm with Xeramix / 50mm with Proformax / 140mm with Proformax S | ||||
| Vandal-proof | Proformax in 50 / 100 / 280mm lengths Zhaga compatible Available with Anti-Vandal Fasteners |
||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental Plugs /Thermal throttle / IOT connectivity / Low smoke / Zero Halogen | ||||
|
DESCRIPTION
|
LENGTHS
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 1143 | 1422 | 1702 | 1981 | 2261 | 2540 | 2819 | 3099 | 3378 |
| total luminaire length in inches | 45 | 56 | 67 | 78 | 89 | 100 | 111 | 122 | 133 |
| ‘560 board multiples | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 4.5 | 5.5 | 6.0 |
EXAMPLE OF STANDARD LENGTH COMBINATION
CREATING LENGTHS WITH XTI 3.5 LD Square (Linear Darklighter)
The XTI 3.5 IP66 IK11 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available ā please consult your local Xero office for information
CUSTOM LENGTHS
Custom lengths Xeramix = 25mm / Proformax = 25mm / Proformax S = 140mm
The XTI series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI series is the ideal choice for your next infrastructure project.
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50ĖC
Xeramix 1 boards are both high output and high efficiency combined giving unmatchedĀ flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35ĀŗC
Xeramix R boards are both high output and high efficiency combined givingĀ unmatched flexibility, by tuning the drive current any output is achievable.
CREATING LENGTHS WITH XTI 3.0 Square IP66 IK11
The XTI 3.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available ā please consult your local Xero office for information
DownĀ Optics
*
*
*
>
>click on selection above to view larger image Note: All Louvres are behind a clear polycarbonated cover
Ā Ā Ā Ā Ā
Unlit butt bends only
Ā
* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
|
STANDARD COLOURS
* No additional cost
RAL COLOURS
ANODISED FINISHES
|
NON-STANDARD COLOURS
|
X | TEK PREMIUM FINISHES
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
