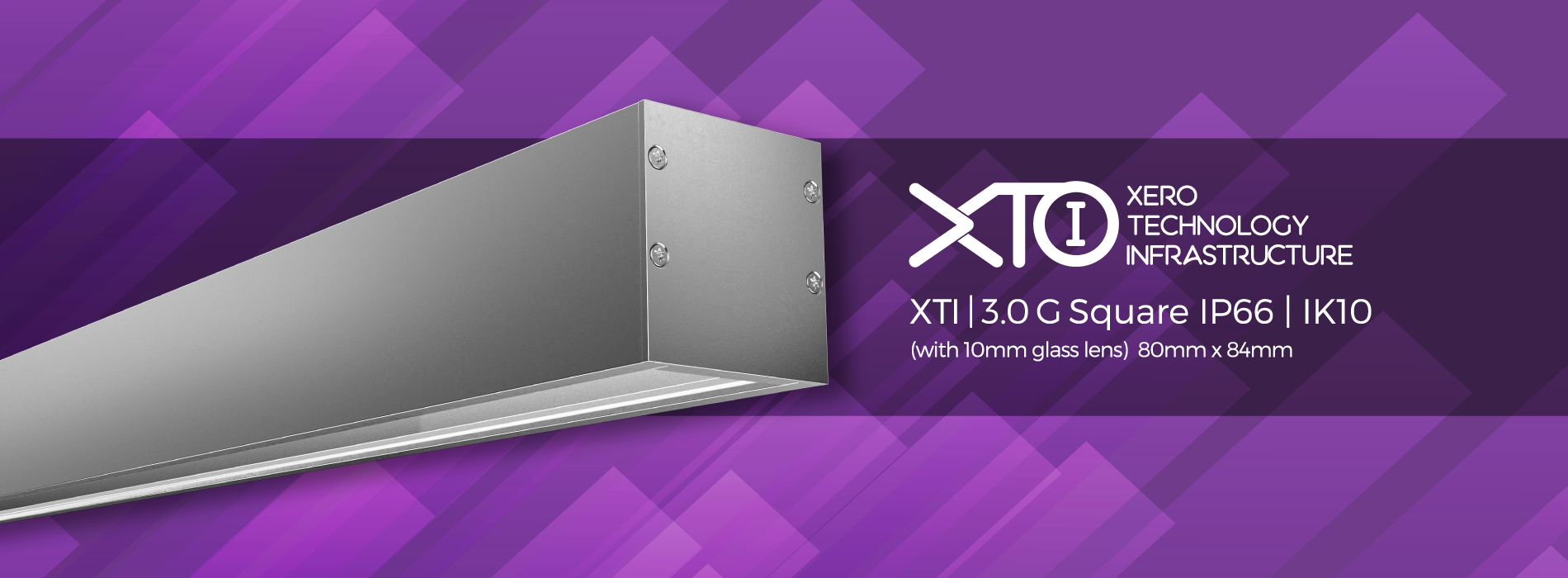

XTI 3.0 G Square IP66 | IK10 80mm Wide x 84mm Highintegral gear continuous
The XTI series is an IP66 / IK10 profile that is capable of 112ºF ambient locations and, with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
|
Output
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance | 114,000 Hours ( L90 B10 @ 50º ) IM hours (L70 B10 @50ºC) | ||||
| Proformax | CRI | 80+ | |||
| Lumen Maintenance | 82,000 Hours ( L80 B10 @ 25º ) | ||||
| Warranty | Xeramix | Xeramix 1 = 10 years, Xeramix R = 15 Years | |||
| Proformax Proformax S |
Proformax RGBW = 5 years, Proformax S = 7 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m (3.28 feet) | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI | ||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 80mm W x 84mm H | |||
| Weight per metre | 6.2kg per metre | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Diffuser | 10mm Toughened Glass & Frosted Acrylic Plexiglass / 10mm Toughened Glass & Louvres available in White, Black, or Silver / Optional Laminated & Toughened Glass Panel with Coloured Interlayer available |
||||
| Connections | Optional polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Wire Suspension and Cable Base with Integrated Cable Management | ||||
| Joiner options | 90º / Straight / 180º / Custom | ||||
| Operating temperatures | Xeramix -25ºC to 50ºC (-13ºF to 140ºF) Proformax RGBW -25ºC to 35ºC (-13ºF to 95ºF) Proformax S = -25ºC to 35ºC (-13ºF to 95ºF) |
||||
| Environment | Luminaire IP66 (Diffuser must not face upwards). | ||||
| Chemical Resistance | Glass provides resistance to some astringent chemicals | ||||
| LED board types | Xeramix 1 and Xeramix R boards and drivers in 25mm / 280mm / and 560mm Zhaga compatible. Proformax in 50mm / 100mm / 280mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||
| IK rating | IK10 | ||||
| Minimum length adjustment | Xeramix = 1mm, Proformax = 25mm, Proformax S = 140mm | ||||
| Vandal-proof | Available with Anti-Vandal Fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental Plugs / Thermal throttle / IOT connectivity. Environmental anti- gravity coating |
||||
|
DESCRIPTION
|
LENGTHS
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 1143 | 1422 | 1702 | 1981 | 2261 | 2540 | 2819 | 3099 | 3378 |
| total luminaire length in inches | 45 | 56 | 67 | 78 | 89 | 100 | 111 | 122 | 133 |
| ‘560 board multiples | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 4.5 | 5.5 | 6.0 |
The XTI 3.0 IP66 IK10 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Custom lengths Xeramix = 25mm / Proformax = 25mm / Proformax S = 140mm
The XTI series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI series is the ideal choice for your next infrastructure project.
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50˚C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.
The XTI 3.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
>
