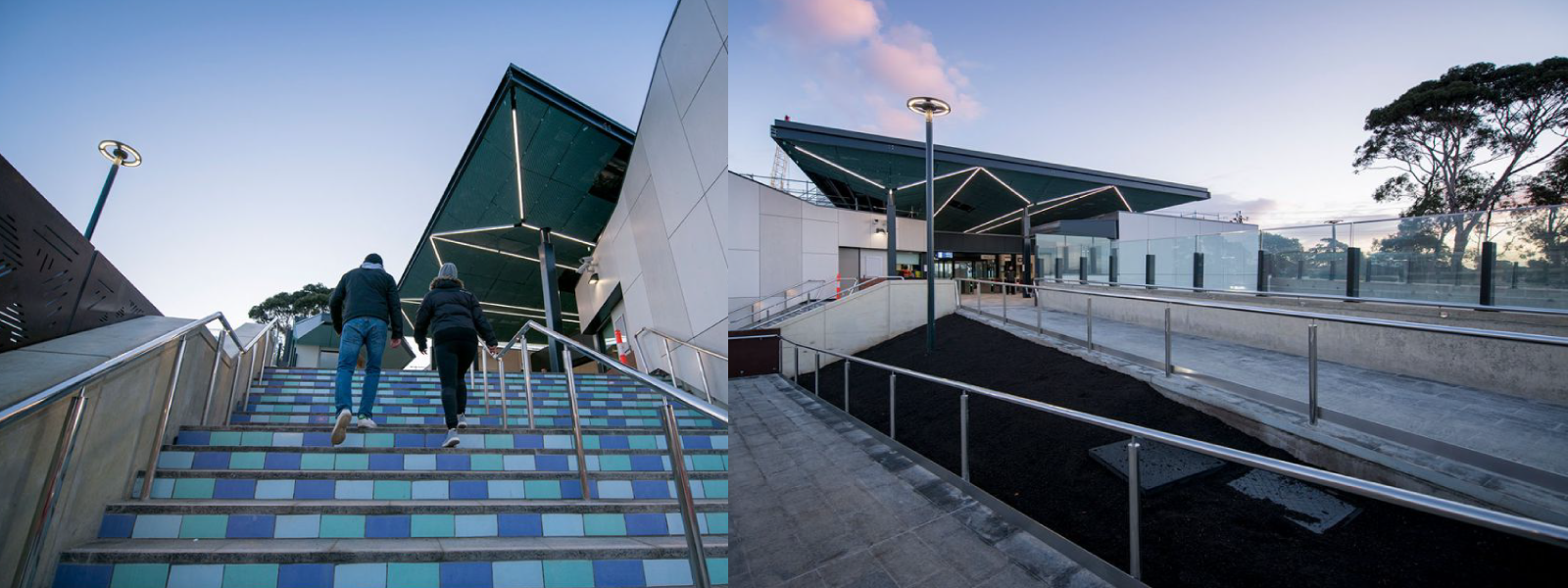

Project: Mentone Station | Melbourne VIC
XTI | 2.0 Slot IP66 | IK11
Project: Mentone Station | Melbourne VIC
PRODUCT OVERVIEW
XTI 2.0 Slot IP66 IK11 – Size: 60mm Wide x 100mm High integral gear continuous
The XTI series is an IP66 / IK11 profile that is capable of 50ºC ambient locations and with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output |
4ft Length 1120mm |
Luminous Flux (Delivered Lumens) |
LO 1900 |
HO 3500 |
|
| Xeramix 1 Xeramix R |
CRI | 80+ | |||
| Lumen Maintenance | 114,000 hours [L90 B10 @ 50°C] 1M hours [L70 B10 @ 50°C] | ||||
| Proformax Proformax S |
CRI | 80+ | |||
| Lumen Maintenance | 114,000 hours [L90 B10 @ 50°C] | ||||
| 24V RGBW System | Dual Row ( DALI / DMX Dimming ) | ||||
| Warranty | Xeramix | Xeramix 1 = 10 years, Xeramix R = 15 years | |||
| Proformax / Proformax S | 7 years | ||||
| 24V RGBW | 3 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI / Dimming options for RGBW; DALI, DMX | ||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 60mm X 100 mm | |||
| Weight per metre | 3.9kg (8.6Ibs) average weight | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Diffuser | Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Louvres available in White, Black, or Silver | ||||
| Connections | Optional polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount / custom Mounting | ||||
| Joiner options | 90º/ Straight / 180º/ Custom | ||||
| Operating temperatures | Xeramix = -25ºC to 50ºC (-13ºF to 140ºF) 24V RGBW – (20ºC to 35ºC) Proformax = -25ºC to 35ºC (-13ºF to 95ºF) Proformax S = -25ºC to 35ºC (-13ºF to 95ºF) |
||||
| Environment | IP66 (not in direct sunlight) (diffuser must not face upwards) | ||||
| Minimum length adjustment | Xeramix = 1mm, Proformax = 25mm, Proformax S = 140mm | ||||
| LED board types | Xeramix LED boards in 25mm / 100mm / 280mm / 560mm lengths Zhaga compatible Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||
| IK rating | IK11 | ||||
| Vandal proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental plugs / Thermal throttle / IOT connectivity | ||||
|
DESCRIPTION |
LENGTHS |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 578 | 858 | 1138 | 1418 | 1698 | 1978 | 2258 | 2538 | 2818 | 3098 | 3378 |
| total luminaire length in inches | 23 | 34 | 45 | 56 | 67 | 78 | 89 | 99 | 111 | 122 | 133 |
| ‘560 board multiples | 1.0 | 1.5 | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 4.5 | 5.5 | 6.0 |
EXAMPLE OF STANDARD LENGTH COMBINATION
CREATING LENGTHS WITH XTI | 2.0 Square IP66 IK11
The XTI | 2.0 IP66 IK11 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
CUSTOM LENGTHS
Custom lengths Xeramix = 25mm / Proformax = 25mm / Proformax S = 140mm
The XTI | 2.0 Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTI | 2.0 is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light that comes from Xero’s exclusive patent ‘SpeedConnect’ System
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50˚C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.
CREATING LENGTHS WITH XTI | 2.0 Slot IP66 IK11
The XTI | 2.0 IP66 IK11 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
*
*
*
>
>click on selection above to view larger image Note: All Louvres are behind a clear polycarbonated cover
Unlit butt bends only
* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
|
STANDARD COLOURS * No additional cost
RAL COLOURS
ANODISED FINISHES
|
NON-STANDARD COLOURS
|
X | TEK PREMIUM FINISHES
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
