XTA | 2.0 Loop Recessed

THIS IS A SPECIAL ORDER PRODUCT Thank you for considering this SPECIAL ORDER PRODUCT. Please note that this product may require a longer lead time and a minimum order quantity. For more detailed information on this profile, we recommend speaking with your local Xero Specification Consultant. Visit xerolighting.com/contact for further assistance.

PRODUCT OVERVIEW

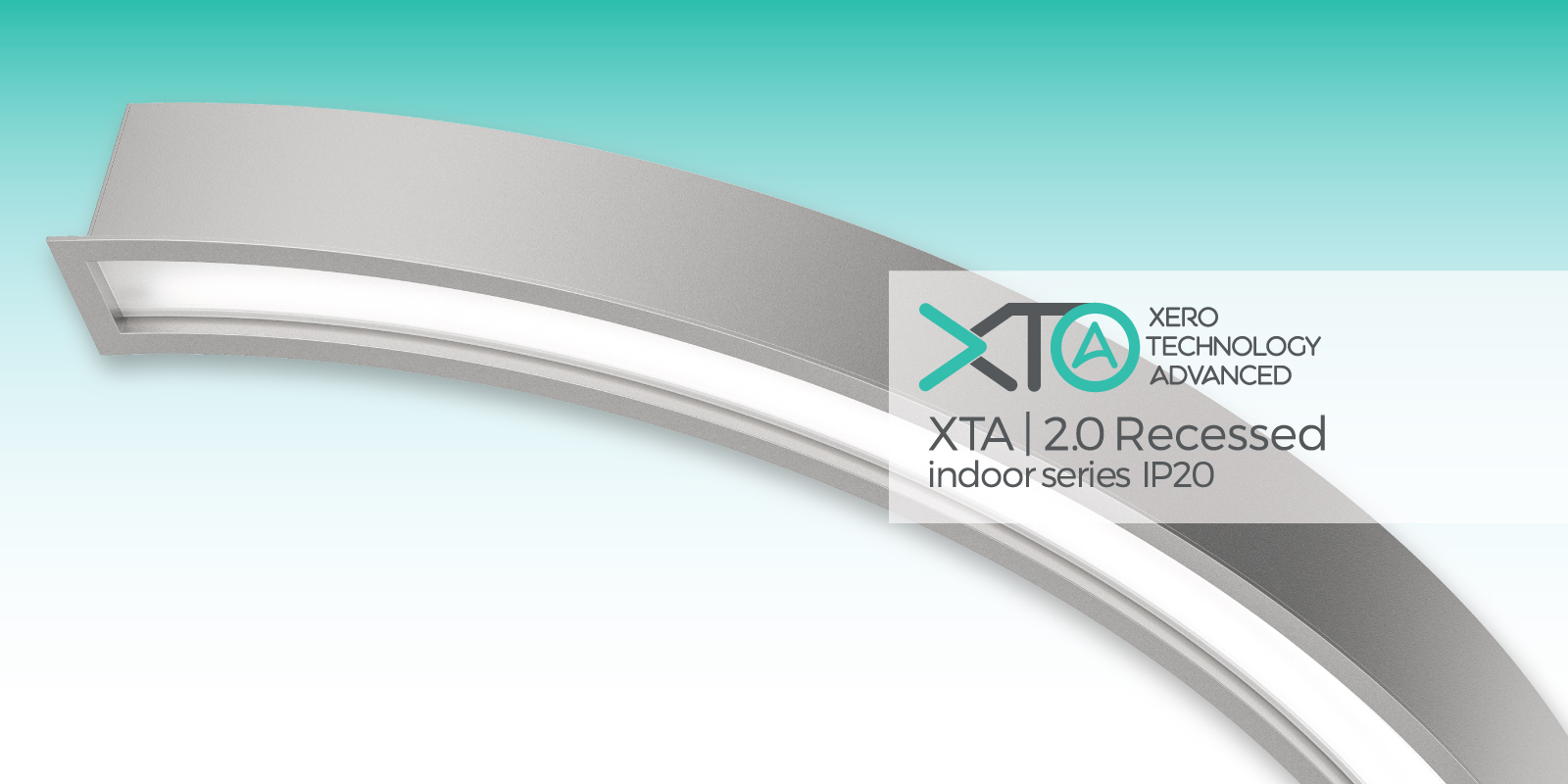

XTA 2.0 Loop Recessed – Size: 60mm Wide x 100mm High (inc flange 86mm Wide)integral gear continuous

The XTA | 2.0 Loop Recessed series is a streamlined body profile that can be formed into a myriad of shapes and sizes – from simple curved corners to the most complex configurations. The only limit is your imagination.
Superior optics and Xero’s patented Speed Connect joining system enables truly “light leak free joins” and removable gear trays that can be upgraded in the future.

FEATURES
Xero’s Proformax and Xeramix light engines and drivers come with 90º and 180º joiners that can be lit only. This makes it possible to create continuous, uncompromised ribbons of light. All XTA products come with a 7-year standard warranty using Proformax light engines, with the option to upgrade to the 10-year advanced industry-leading warranty using Xeramix1.
Go to xerolighting.com/warranty for more details

Standard Flat Endplate

DATA TABLE

Optic Module LED Engine	4ft Length 1120mm	Luminous Flux (Delivered Lumens)	LO 1900	HO 3500
	Xeramix	CRI	80+
		Lumen Maintenance:	114,000 Hours ( L90 B10 @ 50º )
	Proformax Proformax S	CRI	90+
		Lumen Maintenance:	82,000 Hours ( L80 B10 @ 35º )
	24V RGBW System		Dule Row ( DALI / DMX Dimming )
Warranty	Xeramix		10 years
	Proformax / Proformax S		7 years
	24V RGBW		3 years
Electrical	Power Consumption		Between 20 and 45w/m
	Voltage Input Range		120 – 277V
	Controls		0-10 volts / Dali Control Gear / DSI compatible / DMX / Dimmer switch / Constant light output / Motion sensor / Ripple free / Bluetooth mesh / Casambi control wireless system / Dimming options for RGBW; DALI, DMX
	Total Harmonic Distortion THD		9.8% max
	Approvals		UL / CE / CCC / AS:NZS / EMC
Physical	Dimensions		60 Wide (inc flanges 86mm) X 100mm High
	Weight Per Metre		3.7kg (8.15bs) average weight
	Housing		Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish
	Diffuser		Frosted acrylic lens / Polycarbonate lens
	Accessories		Various connection shapes available
	Connections		Speed Connect joining system with polarised electrical connection between sections
	Compatible Ceiling Type		Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings
	Mounting		Gyprock clips as standard
	Bend Radii		430R / 830R / 1230R as standard with custom radii available
	Mitre Bend options		Lit corner 90º/ Cross 90º/ Tee 90º/ Straight 180º (No unlit)
	Endplate Options		Conseal flat or optional curved end plates
	Operating Temperatures		Xeramix = -25ºC to 50ºC (-13ºF to 140ºF) 24V RGBW – (20ºC to 35ºC) Proformax = -25ºC to 35ºC (-13ºF to 95ºF) Proformax S = -25ºC to 35ºC (-13ºF to 95ºF)
	Environment		Dry indoor applications only
	Minimum Length Adjustment		Xeramix = 1mm, Proformax = 25mm, Proformax S = 140mm
	LED Board Types		Xeramix LED boards in 25mm / 100mm / 280mm / 560mm lengths Zhaga compatible Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible
	Configurations		Down only

PENDANT LENGTHS (FOR XTA | 2.0 Loop Recessed straight sections only)

DESCRIPTION	PENDANT LENGTHS
Total luminaire length in mm	585	865	1145	1425	1705	1985	2265	2545	2825	3105	3385
Total luminaire length in inches (B)	23	34	45	56	67	78	89	100	111	122	133
‘560 board multiples	1	1.5	2.0	2.5	2.0	3.5	4.0	4.5	5.0	5.5	6.0

CONTINUOUS RUNS

DESCRIPTION	CONTINUOUS RUNS
Total luminaire length in mm	3665	3945	4225	4505	4785	5065	5345	5625	5905	6185	6465
Total luminaire length in inches (B)	144	155	166	177	188	199	210	221	232	243	254
‘560 board multiples	6.5	7	7.5	8.0	8.5	9.0	9.5	10.0	10.5	11.0	11.5

DESCRIPTION	CONTINUOUS RUNS
Total luminaire length in mm (B)	6745	7025	7305	7585	7865	8145	8425	8705	8985	9265	9545
Total luminaire length in inches (B)	265	276	287	298	309	320	331	342	353	364	375
‘560 board multiples	12.0	12.5	13.0	13.5	14.0	14.5	15.0	15.5	16.0	16.5	17.0

DESCRIPTION	CONTINUOUS RUNS
Total luminaire length in mm	9825	10105	10385	10665	10945	11225	11505	11785	12065	12345	12625
Total luminaire length in inches (B)	386	397	408	419	431	441	452	463	474	485	497
‘560 board multiples	17.5	18.0	18.5	19.0	19.5	20.0	20.5	21.0	21.5	22.0	22.5

DESCRIPTION	CONTINUOUS RUNS
Total luminaire length in mm	12905	13185	13465	13745	14025	14305	14570	14865	15145	15425	15705
Total luminaire length in inches (B)	507	518	530	541	552	563	574	585	596	607	618
‘560 board multiples	23.0	23.5	24.0	24.5	25.0	25.5	26.0	26.5	27.0	27.5	28.0

DESCRIPTION	CONTINUOUS RUNS
Total luminaire length in mm	15985	16265	16545	16825	17105	17385	17665	17945	18225	18505	18785
Total luminaire length in inches (B)	630	640	651	662	673	684	695	706	717	728	739
‘560 board multiples	28.5	29.0	29.5	30.0	30.5	31.0	31.5	32.0	32.5	33.0	33.5

CUSTOM LENGTHS (FOR XTA | 2.0 Loop Recessed straight sections only)

CUSTOM LENGTHS
Custom lengths for Xeramix are available in 1mm increments above the minimum pendant length of 590mm
Custom lengths for Proformax are available in 25mm increments above the minimum pendant length of 590mm
Custom lengths for Proformax S are available in 140mm increments above the minimum pendant length of 590mm

The XTA | 2.0 Loop Recessed series brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTA | 2.0 Loop Recessed series is the perfect choice for offices, retail, and public spaces with clean, uninterrupted lines of light.

L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

L90 B10 114,000 @ 50˚C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable

3000k_symbol 4000k_symbol 5000k tuneable-white_symbol cyanosis_symbol rgb_symbol rgbw_symbol

down_symbol

135_symbol cross-90_symbol tee-90_symbol corner-90_symbol ceiling-to-wall_symbol custom_symbol

applicable only to 2.0 Loop straight sections

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol

* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact

STANDARD COLOURS

* No additional cost

Textured White 90133641 Textured White90133641

Precious Silver 9717043K Precious Silver9717043K

Textured Black 90132679 Textured Black90132679

RAL COLOURS

* Additional cost

RAL 9010
Pure White Satin PR12/40197/CS1 RAL 9010
Pure White SatinPR12/40197/CS1

RAL 7035
Light Grey Satin PR12/60978/CS1 RAL 7035
Light Grey SatinPR12/60978/CS1

RAL 9003
Signal White Satin PR12/40197/CS1 RAL 9003
Signal White SatinPR12/40197/CS1

RAL 1015
Light Ivory Gloss PR12/941/C72 RAL 1015
Light Ivory GlossPR12/941/C72

RAL 7032
Pebble Grey Satin PR12/60232/CS2 RAL 7032
Pebble Grey SatinPR12/60232/CS2

RAL 6002
Leaf Green Gloss PR12/20726/C12 RAL 6002
Leaf Green GlossPR12/20726/C12

RAL 9005
Jet Black Gloss PR12/710/C42 RAL 9005
Jet Black GlossPR12/710/C42

RAL 9004
Signal Black Matt PR18/7120/CM3 RAL 9004
Signal Black MattPR18/7120/CM3

RAL 5012
Light Blue Satin PR12/30670/CS5 RAL 5012
Light Blue SatinPR12/30670/CS5

RAL 5005
Signal Blue Satin PR12/30263/CS6 RAL 5005
Signal Blue SatinPR12/30263/CS6

RAL 1021
Colza Yellow Satin PR12/60464/CS6 RAL 1021
Colza Yellow SatinPR12/60464/CS6

RAL 1018
Zinc Yellow Gloss PR12/159/C46 RAL 1018
Zinc Yellow GlossPR12/159/C46

RAL 1003
Signal Yellow Gloss PR12/134/C36 RAL 1003
Signal Yellow GlossPR12/134/C36

RAL 2000
Yellow Orange Gloss PR12/650/C38 RAL 2000
Yellow Orange GlossPR12/650/C38

RAL 2009
Traffic Orange Gloss PR12/6162/C21 RAL 2009
Traffic Orange GlossPR12/6162/C21

ANODISED FINISHES

(Not available for curved profiles)
* Additional cost

25 micron Annodised 25 micron Annodised

Grey Anodised Grey Anodised

Black Anodised Black Anodised

Green Anodised Green Anodised

Gold Anodised Gold Anodised

Blue Anodised Blue Anodised

Red Anodised Red Anodised

NON-STANDARD COLOURS

GROUP 1 COLOURS
* Additional cost
alphatec classic white gloss 27281880 alphatec classic white gloss27281880	10 Micron Anodised Aluminium (Not available for curved profiles) 10 Micron Anodised Aluminium (Not available for curved profiles)	APO Grey Scylla 90136612 APO Grey Scylla90136612
Black Scylla 90150003 Black Scylla90150003	Horizon White Scylla 90151608 Horizon White Scylla90151608	Mid Bronze Matt 27251014 Mid Bronze Matt27251014
Metropolis Silver Glow Gloss 97184623 Metropolis Silver Glow Gloss97184623	Notre Dame Scylla 90150223 Notre Dame Scylla90150223	Onyx Pearl Gloss 97152052 Onyx Pearl Gloss97152052
Pewter Pearl Satin 97188202 Pewter Pearl Satin97188202	Silver Grey Matt 27251272 Silver Grey Matt27251272	Steel pearl Satin 97157127 Steel pearl Satin97157127
Zincshield Matt 9907036M Zincshield Matt9907036M	Shoji White Satin 27284682 Shoji White Satin27284682	Charcoal Gloss 2729086G Charcoal Gloss2729086G
Olde Pewter Satin 27250243 Olde Pewter Satin27250243	Cottage Green Satin 27284219 Cottage Green Satin27284219	APO Grey Satin 27232786 APO Grey Satin27232786
Berry Grey, Gloss 2727262G Berry Grey, Gloss2727262G	JASPER satin 2728122S JASPER satin2728122S	black CB night sky satin 95981878 black CB night sky satin95981878
black satin 90109024S black satin90109024S	Black Gloss 2729090G Black Gloss2729090G	Black Matt 27219319 Black Matt27219319
blue ridge satin 27288480 blue ridge satin27288480	bright white gloss 27284636 bright white gloss27284636	charcoal satin 27288351 charcoal satin27288351
classic cream satin 2722095S classic cream satin2722095S	dark grey Matt 27251275 dark grey Matt27251275	deep brunswick green 2726134G deep brunswick green2726134G
deep ocean satin 2725125S deep ocean satin2725125S	dune satin 2723087S dune satin2723087S	duralloy white satin 2721139S duralloy white satin2721139S
evening haze satin 2723055S evening haze satin2723055S	ironstone satin 2727257S ironstone satin2727257S	manor red satin 2724134S manor red satin2724134S
monument matt 9599066M monument matt9599066M	monument satin 2729067S monument satin2729067S	natural pearl matt 97189119 natural pearl matt97189119
notre dame gloss 27236672 notre dame gloss27236672	olde pewter satin 26050243 olde pewter satin26050243	oyster matt 27236858 oyster matt27236858
paperbark satin 2723088S paperbark satin2723088S	pearl white gloss 2721114G pearl white gloss2721114G	primrose gloss 27284365 primrose gloss27284365
rivergum beige gloss 27236991 rivergum beige gloss27236991	shale grey satin 27283246 shale grey satin27283246	stone grey satin 27278126 stone grey satin27278126
surfmist satin 2721137S surfmist satin2721137S	wedgewood satin 27250279 wedgewood satin27250279	white birch gloss 27237131 white birch gloss27237131
wilderness satin 27284224 wilderness satin27284224	windspray satin 2727256S windspray satin2727256S	woodland grey satin 272255S woodland grey satin272255S
GROUP 2 COLOURS
* Additional cost and minimum quantity required
alphatec blaze blue gloss 98419941 alphatec blaze blue gloss98419941	alphatec french blue gloss 98432725 alphatec french blue gloss98432725	alphatec pommel blue gloss 98451034 alphatec pommel blue gloss98451034
alphatec space blue gloss 98419990 alphatec space blue gloss98419990	alphatec navy gloss 98450282 alphatec navy gloss98450282	alphatec dark violet gloss 98451926 alphatec dark violet gloss98451926
alphatec flame red gloss 98419959 alphatec flame red gloss98419959	alphatec signal red 98450735 alphatec signal red98450735	safety yellow gloss 9842015G safety yellow gloss9842015G
alphatec yellow gold gloss 98433617 alphatec yellow gold gloss98433617	alphatec lemon yellow gloss 98432120 alphatec lemon yellow gloss98432120	alphatec orange x15 gloss 98451439 alphatec orange x15 gloss98451439
alphatec mistletoe gloss 98451040 alphatec mistletoe gloss98451040	alphatec transformer grey gloss 98432186 alphatec transformer grey gloss98432186	Aztec Black 90182757 Aztec Black90182757
Aztec Silver 90185040 Aztec Silver90185040	Copper Kinetic Pearl Satin 9717183K Copper Kinetic Pearl Satin9717183K	Graphite Sarouk 93551677 Graphite Sarouk93551677
Grey Hammer 90185184 Grey Hammer90185184	Gunmetal Kinetic Pearl Satin 9718115K Gunmetal Kinetic Pearl Satin9718115K	Light Grey Scylla 90150766 Light Grey Scylla90150766
Platypus Kinetic Pearl Satin 9717214K Platypus Kinetic Pearl Satin9717214K	Red Brown Scylla 90185473 Red Brown Scylla90185473	Silver Glow Pearl Gloss 97184623 Silver Glow Pearl Gloss97184623
Silver Lode Pearl Texture 9017034Z Silver Lode Pearl Texture9017034Z	Silver Sarouk 93584874 Silver Sarouk93584874	St Elmos Fire Kinetic Pearl Satin 9717208K St Elmos Fire Kinetic Pearl Satin9717208K
Stone Beige Scylla 90185474 Stone Beige Scylla90185474	Storm Grey Scylla 90150183 Storm Grey Scylla90150183	clear gloss 91081797 clear gloss91081797
White Matt 96132312 White Matt96132312	Magnolia Gloss 27232658 Magnolia Gloss27232658	Metropolis Storm Satin 97184684 Metropolis Storm Satin97184684
Primrose Scylla 9013005Z Primrose Scylla9013005Z	Classic Hawthorn Green Gloss 27233709 Classic Hawthorn Green Gloss27233709	Mannex Suede, Texture 90137543 Mannex Suede, Texture90137543
Citi Matt 97188471 Citi Matt97188471	armourspray velocity green 91033709 armourspray velocity green91033709	armourspray white gloss 91019143 armourspray white gloss91019143
barley gloss 2723089G barley gloss2723089G	barrister white satin 27284672 barrister white satin27284672	black Sarouk 93551146 black Sarouk93551146
blue Hammer 90185159 blue Hammer90185159	bright silver metallic gloss 96151491 bright silver metallic gloss96151491	canola cream satin 27281796 canola cream satin27281796
champagne Kinetic Matt 9713059K champagne Kinetic Matt9713059K	charcoal Metallic Pearl Gloss 97118796 charcoal Metallic Pearl Gloss97118796	copper satin 9614137Q copper satin9614137Q
light grey gloss 2727263G light grey gloss2727263G	magnolia Scylla gloss 90133618 magnolia Scylla gloss90133618	off white satin 27233732 off white satin27233732
precious nickel pearl matt 97188360 precious nickel pearl matt97188360	riversand matt 95936656 riversand matt95936656	streetwise silver satin 9107049Q streetwise silver satin9107049Q
surfmist matt 95984758 surfmist matt95984758	weathered copper matt 27233724 weathered copper matt27233724	woodland grey matt 95951698 woodland grey matt95951698
