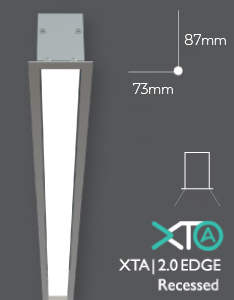

XTA | 2.0 EDGE Slot

PRODUCT OVERVIEW

XTA 2.0 EDGE Slot – Size: 60mm Wide x 103mm Highintegral gear continuous

The XTA | 2.0 EDGE series is a streamlined body profile that has superior optics and Xero’s patented Speed Connect joining system that enables truly “light leak free joins” and removable gear trays that can be upgraded in the future.

FEATURES
Xero’s Proformax and Xeramix light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTA products come with a 7 year standard warranty using Proformax light engines, or the 10 year advanced industry leading warranty using Xeramix1. Xero also offers their optional 15 year warranty when you choose to select XeramixR.
Go to xerolighting.com/warranty for more details

Proformax S combined logo
DATA TABLE
LED Engine
4ft Length
1120mm
Luminous Flux
(Delivered Lumens)
LO
1900
HO
3500
Xeramix CRI 80+
Lumen Maintenance: 114,000 Hours ( L90 B10 @ 50º )
Proformax
Proformax S
CRI 90+
Lumen Maintenance: 82,000 Hours ( L80 B10 @ 35º )
Warranty Xeramix Xeramix = 10 Years / Xeramix R = 15 years / Xeramix DALI Relay = 15 Years
Proformax / Proformax S 7 years
Electrical Power Consumption Between 20 and 45w/m
Voltage input range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 60 X 103 mm
Weight per metre 3.5kg (7.7Ibs) average weight
Housing Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish
Diffuser Frosted acrylic lens / Polycarbonate lens / Microprism lens / Low UGR Plexiglass / Optic white louvre / Semi specular louvre
Connections Speed connect joining system with polarised electrical connection between sections
Compatible ceiling type Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings
Mounting Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount
Joiner options Lit corner 90º/ Cross 90º/ Tee 90º/ straight 180º join
Operating temperatures Xeramix = -25ºC to 50ºC (-13ºF to 140ºF)
Proformax = -25ºC to 35ºC (-13ºF to 95ºF)
Proformax S = -25ºC to 35ºC (-13ºF to 95ºF)
Environment Dry indoor applications only
Minimum length adjustment Xeramix = 1mm, Proformax = 25mm, Proformax S = 140mm
LED Board types Xeramix LED boards in 25mm / 100mm / 280mm / 560mm lengths Zhaga compatible
Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible
Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible
PENDANT LENGTHS
DESCRIPTION
PENDANT LENGTHS
total luminaire length in mm 585 865 1145 1425 1705 1985 2265 2545 2825 3105 3385
total luminaire length in inches 23 34 45 56 67 78 89 100 111 122 133
‘560 board multiples 1 1.5 2.0 2.5 2.0 3.5 4.0 4.5 5.0 5.5 6.0
CONTINUOUS RUNS
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 3665 3945 4225 4505 4785 5065 5345 5625 5905 6185 6465
total luminaire length in inches 144 155 166 177 188 199 210 232 243 254 265
‘560 board multiples 6.5 7 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 6745 7025 7305 7585 7865 8145 8425 8705 8985 9265 9545
total luminaire length in inches 276 287 298 309 320 331 342 353 364 375 386
‘560 board multiples 12.0 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0 16.5 17.0
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 9825 10105 10385 10665 10945 11225 11505 11785 12065 12345 12625
total luminaire length in inches 397 408 419 430 441 452 463 474 485 496 507
‘560 board multiples 17.5 18.0 18.5 19.0 19.5 20.0 20.5 21.0 21.5 22.0 22.5
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 12905 13185 13465 13745 14025 14305 14585 14865 15145 15425 15705
total luminaire length in inches 518 529 540 551 562 573 584 595 606 617 628
‘560 board multiples 23.0 23.5 24.0 24.5 25.0 25.5 26.0 26.5 27.0 27.5 28.0
DESCRIPTION
CONTINUOUS RUNS
total luminaire length in mm 15985 16265 16545 16825 17105 17385 17665 17945 18225 18505 18785
total luminaire length in inches 639 650 661 672 683 694 705 716 727 738 749
‘560 board multiples 28.5 29.0 29.5 30.0 30.5 31.0 31.5 32.0 32.5 33.0 33.5

All the above lengths are for Non-IP rated systems only. Lengths vary slightly when IP rated systems are selected.
Please consult your local Xero representative for details

CUSTOM LENGTHS
CUSTOM LENGTHS
Custom lengths for Xeramix are available in 1mm increments above the minimum pendant length of 590mm
Custom lengths for Proformax are available in 25mm increments above the minimum pendant length of 590mm
Custom lengths for Proformax S are available in 140mm increments above the minimum pendant length of 590mm

The XTA | 2.0 EDGE series brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTA | 2.0 EDGE series is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light.

L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

L90 B10 114,000 @ 50˚C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable

L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.

3000k_symbol4000k_symbol5000ktuneable-white_symbolcyanosis_symbolrgb_symbolrgbw_symbol

down_symbol



click on selection above to view larger image

double-wire-suspended rod-suspension wall-mount
split-wire_symbol rod-fixing_symbol wall-mount_symbol

135_symbolcross-90_symboltee-90_symbolcorner-90_symbolceiling-to-wall_symbolcustom_symbol

downlights_symbol sensors-daylight-harvesting_symbolemergency-packs_symbol

* Other options including custom colour matching available on request
