XTS | 3.0 Recessed

PRODUCT OVERVIEW

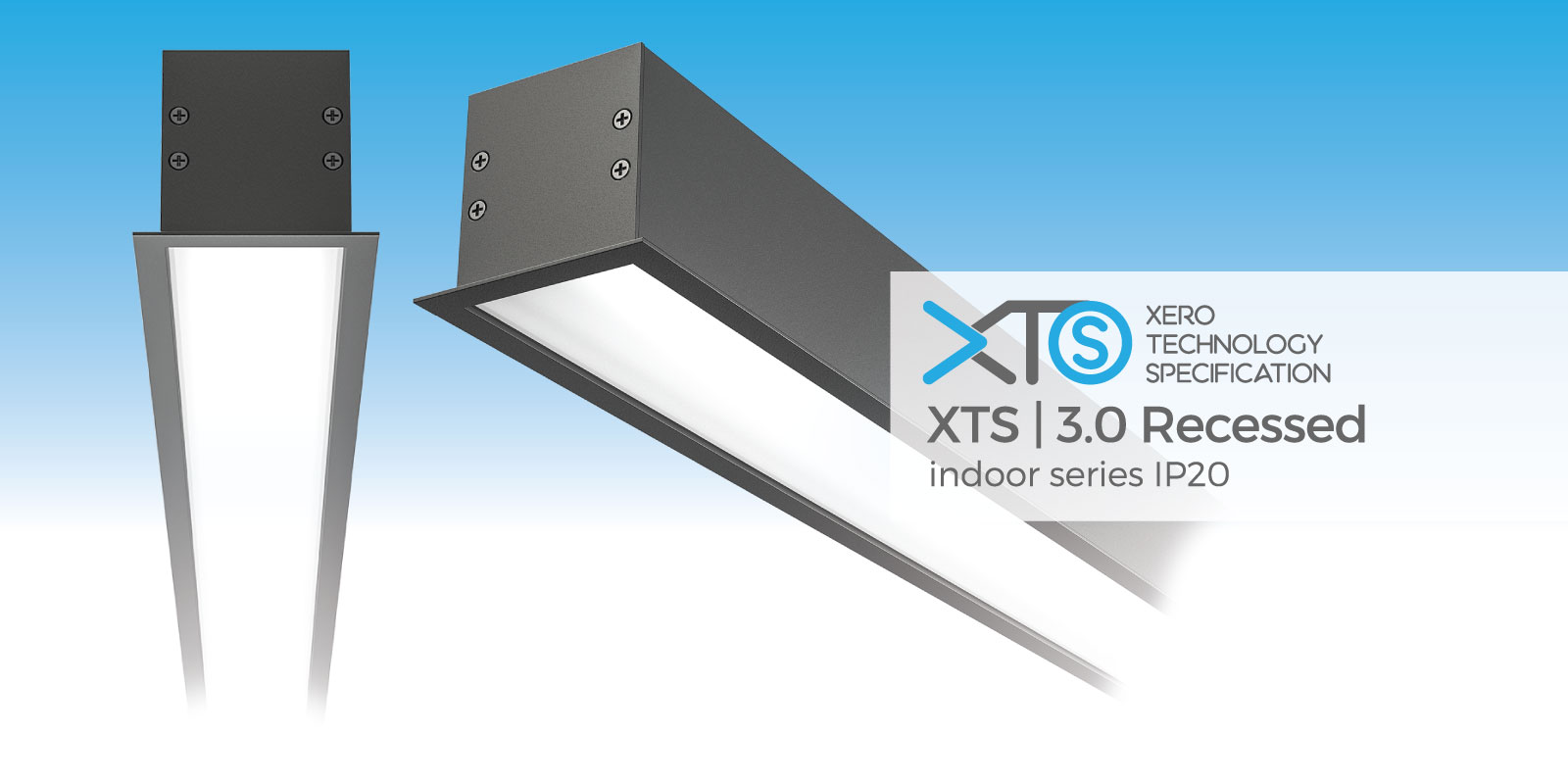

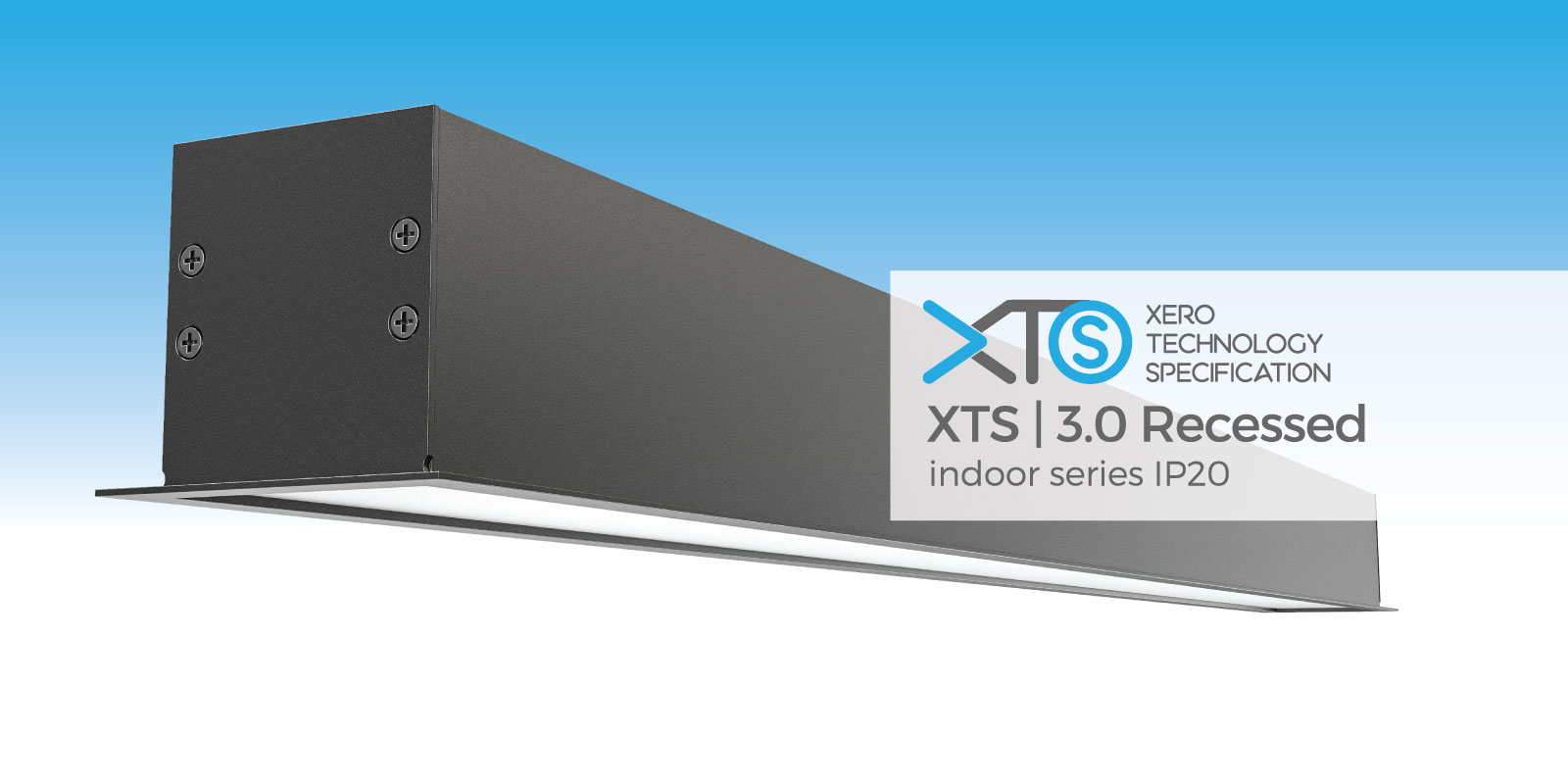

XTS 3.0 Recessed – Size: 72mm Wide (including flanges 92mm Wide) x 81mm Highintegral gear continuous

The XTS | 3.0 series is an ideal specification profile with superior optics and removable gear trays that can be upgraded in the future.
The XTS series offers 50mm incremental lengths using the Proformax Light engines

FEATURES
Xero’s Proformax light engine with drivers come with 90º and 180º joiners that can be lit or unlit.
This allows a continuous ribbons of light without compromise.
All XTS products come with a 7 year standard warranty using Proformax light engine.

Go to xerolighting.com/warranty for more details

DATA TABLE

Output	4ft Length 1120mm	Luminous Flux (Delivered Lumens)	LO 1900	HO 3500
	CRI		90+
	Lumen Maintenance		82,000 hours (L80 B10 @ 35º)
Warranty	Proformax / Proformax S		7 Years
Electrical	Power Consumption		Between 20 and 45w/m
	Voltage input range		120 – 277V
	Control methods		Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI
	Total harmonic distortion THD		9.8% max
	Approvals		UL / CE / CCC / AS:NZS / EMC
Physical	Dimensions		72mm Wide (inc flanges 92mm Wide) X 81mm High
	Endplates		Screwed End Plates
	Weight per metre		2.8kg (6.2Ibs) average weight
	Housing		Aluminium Extrusion with standard silver powder-coat, black or white textured, (or) optional selected powder-coated finish
	Downward diffuser		Frosted acrylic lens
	Connections		Polarised electrical connection between sections
	Compatible ceiling type		Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
	Mounting		Gyprock clips as standard
	Joiner options		Lit corner 90º / Cross 90º / Tee 90º / Straight 180º join
	Operating temperatures		Proformax = -25ºC to 35ºC (-13ºF to 95ºF) Proformax S = -25ºC to 35ºC (-13ºF to 95ºF)
	Environment		Dry indoor applications only
	Minimum length adjustment		Proformax = 50mm, Proformax S = 140mm
	LED board types		Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible

PENDANT LENGTHS

DESCRIPTION	PENDANT LENGTHS
total luminaire length in mm	572	852	1132	1412	1692	1972	2252	2532	2812	3092	3372
total luminaire length in inches	23	34	45	56	67	78	89	100	111	122	133
‘560 board multiples	1	1.5	2.0	2.5	2.0	3.5	4.0	4.5	5.0	5.5	6.0

CONTINUOUS RUNS

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	3652	3932	4212	4492	4772	5052	5332	5612	5892	6172	6452
total luminaire length in inches	144	155	166	177	188	199	210	232	243	254	265
‘560 board multiples	6.5	7	7.5	8.0	8.5	9.0	9.5	10.0	10.5	11.0	11.5

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	6732	7012	7292	7572	7852	8132	8412	8692	8972	9252	9532
total luminaire length in inches	276	287	298	309	320	331	342	353	364	375	386
‘560 board multiples	12.0	12.5	13.0	13.5	14.0	14.5	15.0	15.5	16.0	16.5	17.0

Please note the above lengths do not include flanges

CUSTOM LENGTHS

Custom lengths are available in 70mm increments above the minimum pendant length of 585mm

Custom lengths for Proformax S are available in 140mm increments above the minimum pendant length of 590mm

The XTS | 3.0 Recessed Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTS | 3.0 Recessed is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light.

L80 B10 82,000 hours @35ºC
