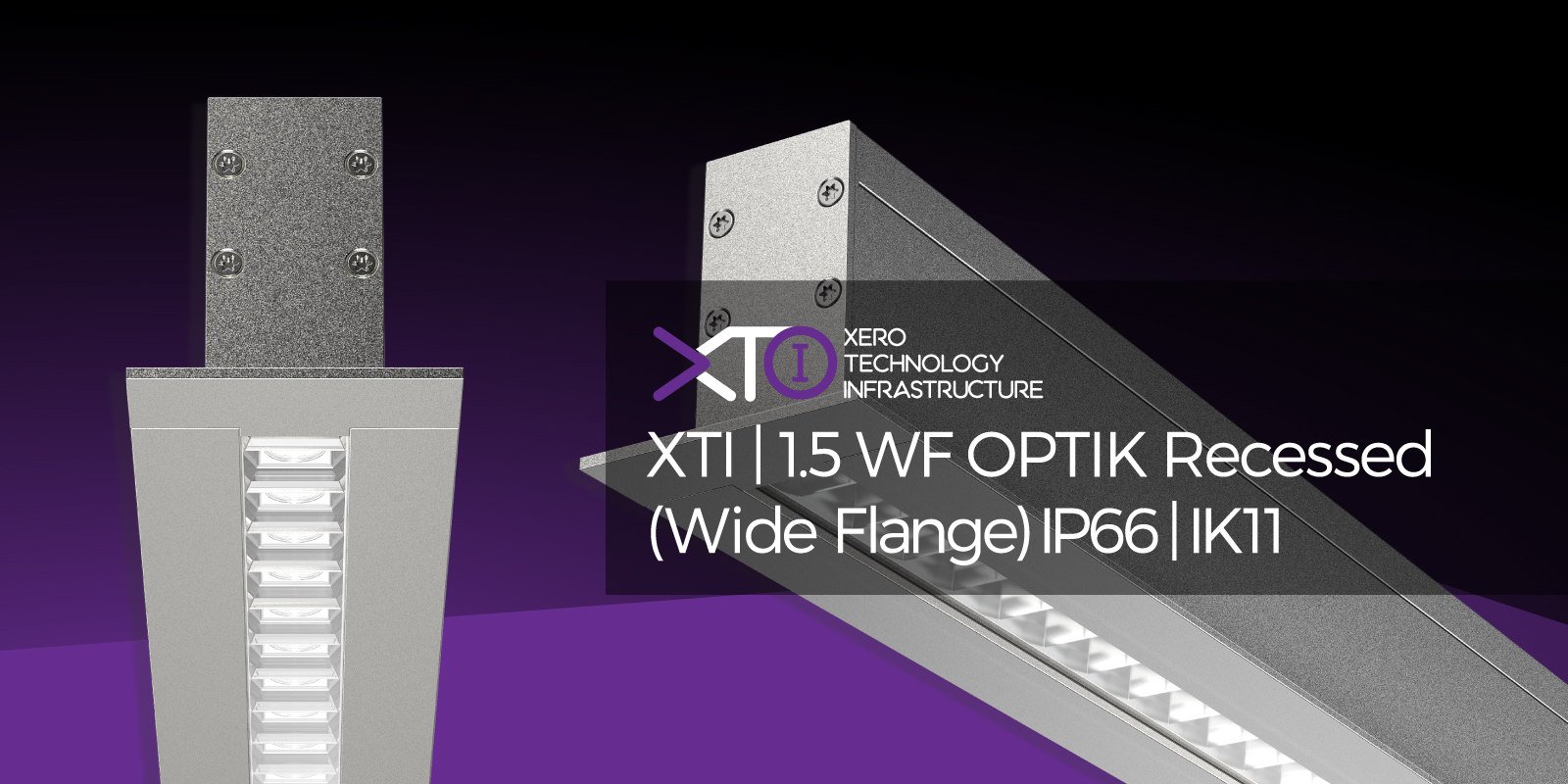

XTI 1.5 WF OPTIK Recessed IP66 | IK11 – Size: 78mm (3.42″)Wide x 87mm (3.07″) High integral gear continuous
The XTI 1.5 series is an IP66 / IK11 profile that is capable of 50ĀŗC ambient locations and with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
|
Output
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance | 114,000 hours [L90 B10 @ 50Ā°C] 1M hours [L70 B10 @ 50Ā°C] | ||||
| Proformax Proformax S |
CRI | 80+ | |||
| Lumen Maintenance | 82,000 hours [L80 B10 @ 25Ā°C] | ||||
| Warranty | Xeramix | 10 years | |||
| Proformax / Proformax S | 7 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 120 ā 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI Dimming control: DALI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 78mm ( 3.07ā ) Wide x 87mm (3.42ā ) High | |||
| Weight per metre | 3.65Kg (8.04lbs) average weight | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Diffuser | Polycarbonate Diffuser/ Clear Polycarbonate Diffuser / Internal anti-glare baffle | ||||
| Connections | Optional polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Recessed Flange Mounted, Sliding Thread Stud Bracket, Sliding Surface Mounting Plate, Wire Suspension Kit | ||||
| Joiner options | 90Āŗ / Straight / Custom | ||||
| Operating temperatures | Xeramix -25ĀŗC to 50ĀŗC (-13ĀŗF to 140ĀŗF) Proformax = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF) Proformax S = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF) |
||||
| Environment | Luminaire IP66 (not in direct sunlight) (diffuser must not face upwards) | ||||
| Minimum length adjustment | Xeramix = 1mm (with cover plates) / (using OPTIK only = 287mm), Proformax = 25mm, Proformax S = 140mm | ||||
| LED board types | Xeramix LED boards in 25mm / 100mm / 280mm / 560mm lengths Zhaga compatible Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||
| IK rating | IK11 | ||||
| Vandal proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Environmental Plugs /Thermal throttle / IOT connectivity | ||||
| Optic Beam Angles | Optic distributions available in Oval Beam Wall Washer, 18Ā° Spot Beam, 28Ā° Medium Beam, 52Ā° Asymmetric Wide Beam, 64Ā° Wide Beam, and 60Ā° Batwing Beam | ||||
Single
Twin
Triple
Custom*
Note: By using a combination of cover plate and baffle a 1mm increment can be created.
Talk with your local Xero Specification Consultant for your custom design options.
xerolighting.com/contact
The XTI | 1.5 Optik IP66 IK11 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available ā please consult your local Xero office for information
Custom lengths Xeramix = 25mm / Proformax = 25mm / Proformax S = 140mm
The XTI | 1.5 Optik Series Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTI | 1.5 Optik is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light that comes from Xeroās exclusive patent āSpeedConnectā System
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50ĖC
Xeramix 1 boards are both high output and high efficiency combined giving unmatchedĀ flexibility, by tuning the drive current any output is achievable
(Down distribution) Optic available in 18Āŗ / 28Āŗ / 52Āŗ / 64Āŗ / and 30Āŗ x 60Āŗ wall wash.
DownĀ Optics
Ā Ā Ā
* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
|
STANDARD COLOURS
* No additional cost
RAL COLOURS
ANODISED FINISHES
|
NON-STANDARD COLOURS
|
X | TEK PREMIUM FINISHES
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
