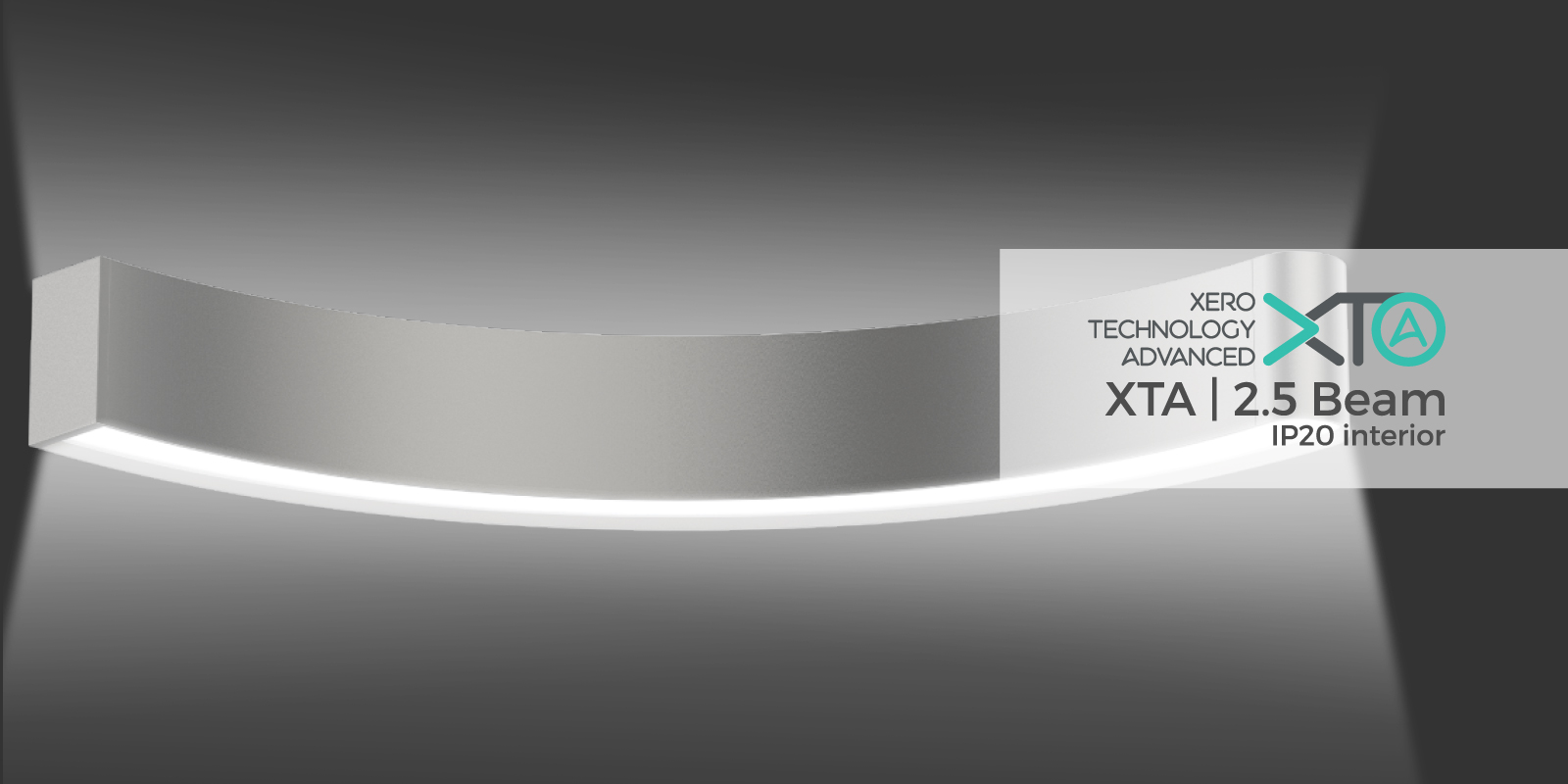

XTA | 2.5 Loop Beam
PRODUCT OVERVIEW
XTA 2.5 Loop Beam – Size: 71mm Wide x 130mm Highintegral gear continuous
The XTA | 2.5 Loop Beam series is a streamlined body profile that can be formed into a myriad of shapes and sizes – from simple curved corners to the most complex configurations. The only limit is your imagination.
Superior optics and Xeroās patented Speed Connect joining system enables truly ālight leak free joinsā and removable gear trays that can be upgraded in the future.
FEATURES
Xeroās Proformax and Xeramix light engines and drivers come with 90Āŗ and 180Āŗ joiners that can be lit only. This makes it possible to create continuous, uncompromised ribbons of light. All XTA products come with a 7 year standard warranty using Proformax light engines, with the option to upgrade to the 10 year advanced industry leading warranty using Xeramix1.
Go to xerolighting.com/warranty for more details
Standard Flat Endplate
Optional Curved Endplate
DATA TABLE
|
Optic Module
LED Engine
|
4ft Length 1120mm |
Luminous Flux (Delivered Lumens) |
LO 1900 |
HO 3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance: | 114,000 Hours ( L90 B10 @ 50Āŗ ) | ||||
| Proformax Proformax S |
CRI | 90+ | |||
| Lumen Maintenance: | 82,000 Hours ( L80 B10 @ 35Āŗ ) | ||||
| Warranty | Xeramix | 10 years | |||
| Proformax / Proformax S | 7 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage Input Range | 120 ā 277V | ||||
| Controls | 0-10 volts / Dali Control Gear / DSI compatible / DMX / Dimmer switch / Constant light output / Motion sensor / Ripple free / Bluetooth mesh / Casambi control wireless system | ||||
| Total Harmonic Distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 71 X 130mm | |||
| Weight Per Metre | 4.6kg (10.14Ibs) average weight | ||||
| Housing | Aluminium Extrusion with: Standard – silver powder-coat, black or white textured, (or) optional selected powder-coated finish | ||||
| Upward Diffuser | Polycarbonate lens | ||||
| Downward Diffuser | Frosted acrylic lens / Polycarbonate lens | ||||
| Accessories | Various connection shapes available | ||||
| Connections | Speed Connect joining system with polarised electrical connections between sections | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / surface mount | ||||
| Bend Radii | 430R / 830R / 1230R as standard with custom radii available (No unlit) | ||||
| Joiner Options | Lit corner 90Āŗ/ Cross 90Āŗ/ Tee 90Āŗ/ Straight 180Āŗ join | ||||
| Endplate Options | Conseal flat or optional curved end plates | ||||
| Operating Temperatures | Xeramix = -25ĀŗC to 50ĀŗC (-13ĀŗF to 140ĀŗF) Proformax = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF) Proformax S = -25ĀŗC to 35ĀŗC (-13ĀŗF to 95ĀŗF) |
||||
| Environment | Dry indoor applications only | ||||
| Minimum Length Adjustment | Xeramix = 1mm, Proformax = 25mm, Proformax S = 140mm | ||||
| LED Board Types | Xeramix LED boards in 25mm / 100mm / 280mm / 560mm lengths Zhaga compatible Proformax LED boards in 50mm / 280mm / 560mm lengths Zhaga compatible Proformax S LED boards in 140mm / 280mm / 560mm lengths Zhaga compatible |
||||

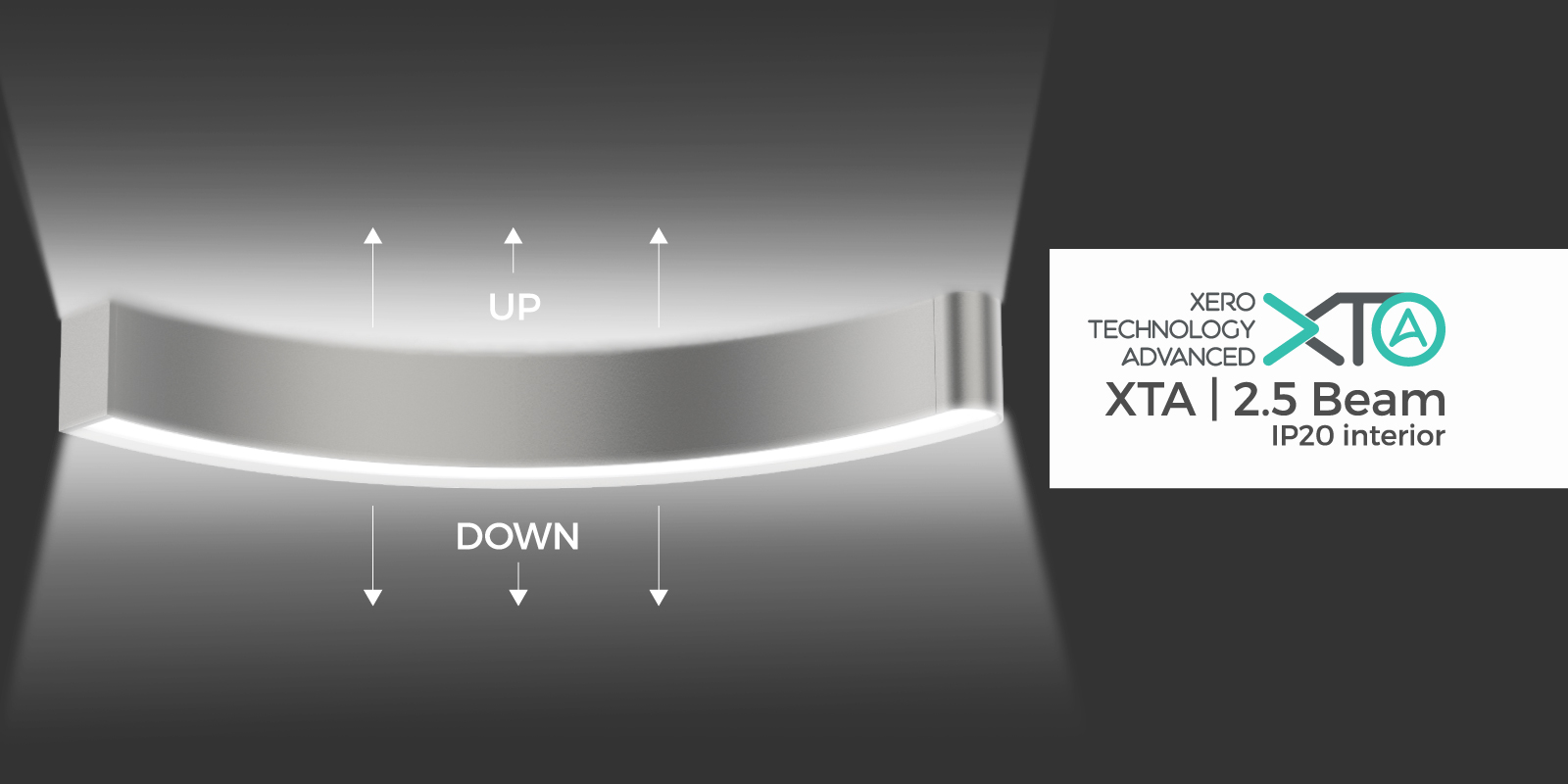

| Configurations | Down only / Up Down / Up only | ||||
PENDANT LENGTHS (FOR XTA | 2.5 Loop Beam straight sections only)
|
DESCRIPTION
|
PENDANT LENGTHS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm | 585 | 865 | 1145 | 1425 | 1705 | 1985 | 2265 | 2545 | 2825 | 3105 | 3385 |
| Total luminaire length in inches (B) | 23 | 34 | 45 | 56 | 67 | 78 | 89 | 100 | 111 | 122 | 133 |
| ‘560 board multiples | 1 | 1.5 | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 |
CONTINUOUS RUNS
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm | 3665 | 3945 | 4225 | 4505 | 4785 | 5065 | 5345 | 5625 | 5905 | 6185 | 6465 |
| Total luminaire length in inches (B) | 144 | 155 | 166 | 177 | 188 | 199 | 210 | 221 | 232 | 243 | 254 |
| ‘560 board multiples | 6.5 | 7 | 7.5 | 8.0 | 8.5 | 9.0 | 9.5 | 10.0 | 10.5 | 11.0 | 11.5 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm (B) | 6745 | 7025 | 7305 | 7585 | 7865 | 8145 | 8425 | 8705 | 8985 | 9265 | 9545 |
| Total luminaire length in inches (B) | 265 | 276 | 287 | 298 | 309 | 320 | 331 | 342 | 353 | 364 | 375 |
| ‘560 board multiples | 12.0 | 12.5 | 13.0 | 13.5 | 14.0 | 14.5 | 15.0 | 15.5 | 16.0 | 16.5 | 17.0 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm | 9825 | 10105 | 10385 | 10665 | 10945 | 11225 | 11505 | 11785 | 12065 | 12345 | 12625 |
| Total luminaire length in inches (B) | 386 | 397 | 408 | 419 | 431 | 441 | 452 | 463 | 474 | 485 | 497 |
| ‘560 board multiples | 17.5 | 18.0 | 18.5 | 19.0 | 19.5 | 20.0 | 20.5 | 21.0 | 21.5 | 22.0 | 22.5 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm | 12905 | 13185 | 13465 | 13745 | 14025 | 14305 | 14570 | 14865 | 15145 | 15425 | 15705 |
| Total luminaire length in inches (B) | 507 | 518 | 530 | 541 | 552 | 563 | 574 | 585 | 596 | 607 | 618 |
| ‘560 board multiples | 23.0 | 23.5 | 24.0 | 24.5 | 25.0 | 25.5 | 26.0 | 26.5 | 27.0 | 27.5 | 28.0 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Total luminaire length in mm | 15985 | 16265 | 16545 | 16825 | 17105 | 17385 | 17665 | 17945 | 18225 | 18505 | 18785 |
| Total luminaire length in inches (B) | 630 | 640 | 651 | 662 | 673 | 684 | 695 | 706 | 717 | 728 | 739 |
| ‘560 board multiples | 28.5 | 29.0 | 29.5 | 30.0 | 30.5 | 31.0 | 31.5 | 32.0 | 32.5 | 33.0 | 33.5 |
CUSTOM LENGTHS (FOR XTA | 2.5 Loop Beam straight sections only)
|
CUSTOM LENGTHS
|
|---|
| Custom lengths for Xeramix are available in 1mm increments above the minimum pendant length of 590mm |
| Custom lengths for Proformax are available in 25mm increments above the minimum pendant length of 590mm |
| Custom lengths for Proformax S are available in 140mm increments above the minimum pendant length of 590mm |
The XTA | 2.5 Loop Beam series brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latestĀ generation of LED technology, The XTA | 2.5 Loop Beam series is the perfect choice for offices, retail and public spaces with clean, uninterrupted linesĀ of light.
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L80 B10 82,000 hours @35ĀŗC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 @ 50ĖC
Xeramix 1 boards are both high output and high efficiency combined giving unmatchedĀ flexibility, by tuning the drive current any output is achievable
click on selection above to view larger image
 |
|
|
 |
 |
applicable only to 2.5 Loop Slot straight sections
* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
|
STANDARD COLOURS
* No additional cost
RAL COLOURS
ANODISED FINISHES
|
NON-STANDARD COLOURS
|
X | TEK PREMIUM FINISHES
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*
* For this profile the Casambi mini interface is available for remote configuration only.
