XTI | 5.0 G Inground IP67 IK10
PRODUCT OVERVIEW

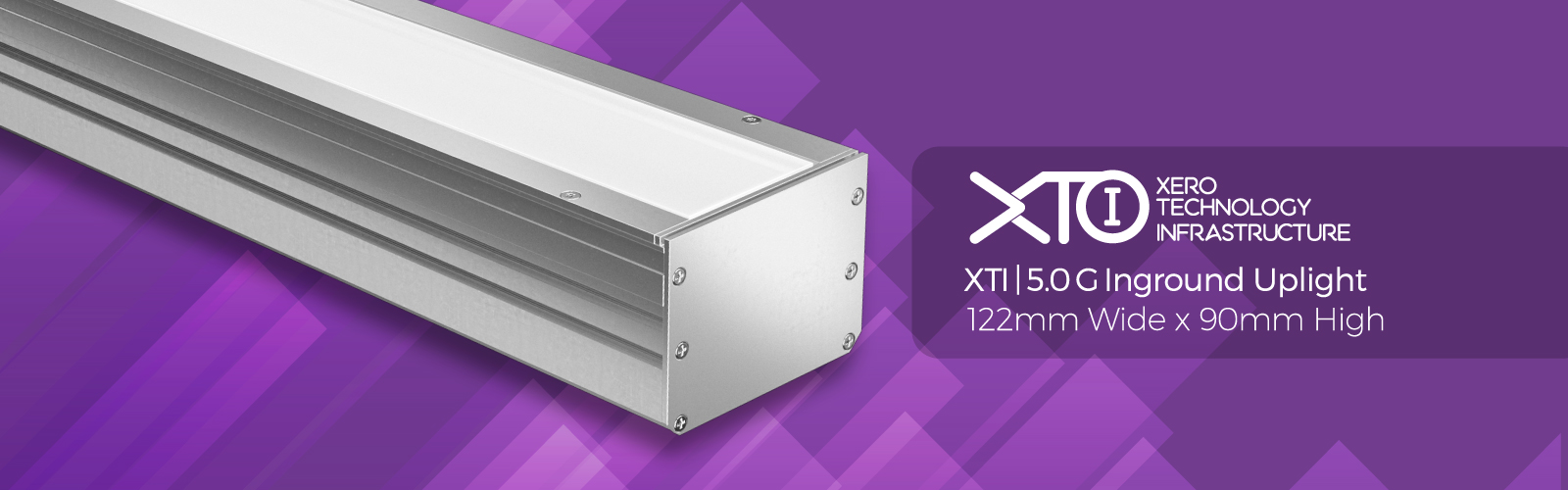

XTI 5.0 G Inground IP67 IK10 – Size 122 mm wide x 90 mm Highintegral gear continuous
Please note: Multiple luminaires can be joined together to achieve any continuous length.
FEATURES
The XTI | 5.0 Inground IP67 IK10 profile has a continuous ribbon diffuser. This industry-first profile can house ancillary components such as emergency packs.
DATA TABLE
|
Output |
Luminous Flux (Delivered Lumens) |
950 lm/m | |||
| CRI | 80+ | ||||
| Lumen Maintenance | 80,000 hours [L80 B20 @ 35°C] | ||||
| 24V RGBW System | Dual Row ( DALI / DMX Dimming ) | ||||
| Warranty | Proformax24 (5 Years) | ||||
| 24V RGBW | 3 years | ||||
| Electrical | Power Consumption | Fixed at 21W/m | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | DALI 2 / Dimming options for RGBW; DALI, DMX | ||||
| Total harmonic distortion THD | 5% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 122mm x 90mm including the niche | |||
| Weight per metre | 6.9kg average weight | ||||
| Housing | Stainless Steel | ||||
| Diffuser | Laminated & Toughened Glass with white interlayer Optional colour interlayer available |
||||
| Distribution | Symmetric distribution | ||||
| Connections | Optional polarised electrical connection between sections | ||||
| Mounting | Inground niche for concrete or paving installation | ||||
| Joiner options | 90º / Straight / 180º / Custom | ||||
| Operating temperatures | -25ºC to 50ºC (-13ºF to 140ºF) 24V RGBW – (20ºC to 35ºC) | ||||
| Environment | IP67 | ||||
| Chemical Resistance | Glass provides resistance to some astringent chemicals | ||||
| Minimum length adjustment | 140mm | ||||
| LED board types | Proformax24 (24 V system) in 140mm / 280mm and 560mm Zhaga lengths | ||||
| IK rating | IK10 | ||||
| Vandal proof | Available with anti-vandal fasteners | ||||
| Optional extras | Thermal throttle, environmental plug, polarised / IP rated plug and socket Environmental anti-graffiti coating | ||||
MAXIMUM LENGTH
The maximum length of the XTI | 5.0 is 1,745mm in any single piece – Multiple pieces can be joined to achieve any overall length
The XTI | 5.0 Inground IP67 IK10 brings high-quality dot free illumination to exterior environments. Featuring the latest generation of LED technology, The XTI | 5.0 Inground IP67 IK10 is the perfect choice for the illumination of building architecture , retail and public spaces with its clean, uninterrupted distribution of light.
L80 B20 @35°C 80,000 hours
Proformax24 boards are both high output and high efficiency combined giving unmatched flexibility.
