Hyperloop Beam Series
| Download CAD files |
 |
| Download Datasheet |
|
Available in 16 profile widths from 75mm to 150mm
(In 5mm increments)
Data Table
|
Output
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| Proformax | CRI | 90+ | |||
| Lumen Maintenance: | L80 B20 89,000 Hours @ 25°C | ||||
| Warranty | Proformax | 10 years | |||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 240V | ||||
| Controls | 0-10 volts / Dali control gear / DSi compatible / DMX / Dimmer switch / Constant light output / Motion sensor / Ripple Free / Bluetooth mesh / Casambi control wireless system | ||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / AS:NZS / EMC | ||||
| Physical | Dimensions | 75mm – 150mm Wide (in 5mm increments) x 130mm High | |||
| Weight per metre | 75mm = 5.42kg, 80mm = 5.53kg, 85mm = 5.63kg, 90mm = 5.74kg, 95mm = 5.84kg, 100mm = 5.95kg, 105mm = 6.05kg, 110mm = 6.16kg, 115mm = 6.26kg, 120mm = 6.37kg, 125mm = 6.47kg, 130mm = 6.58kg, 135mm = 6.68kg, 140mm = 6.79kg, 145mm = 6.89kg, 150mm = 7.00kg | ||||
| Housing | Aluminium Extrusion with powder-coated finish: Black / White Texture, Silver, (or) optional selected powder-coated finishes | ||||

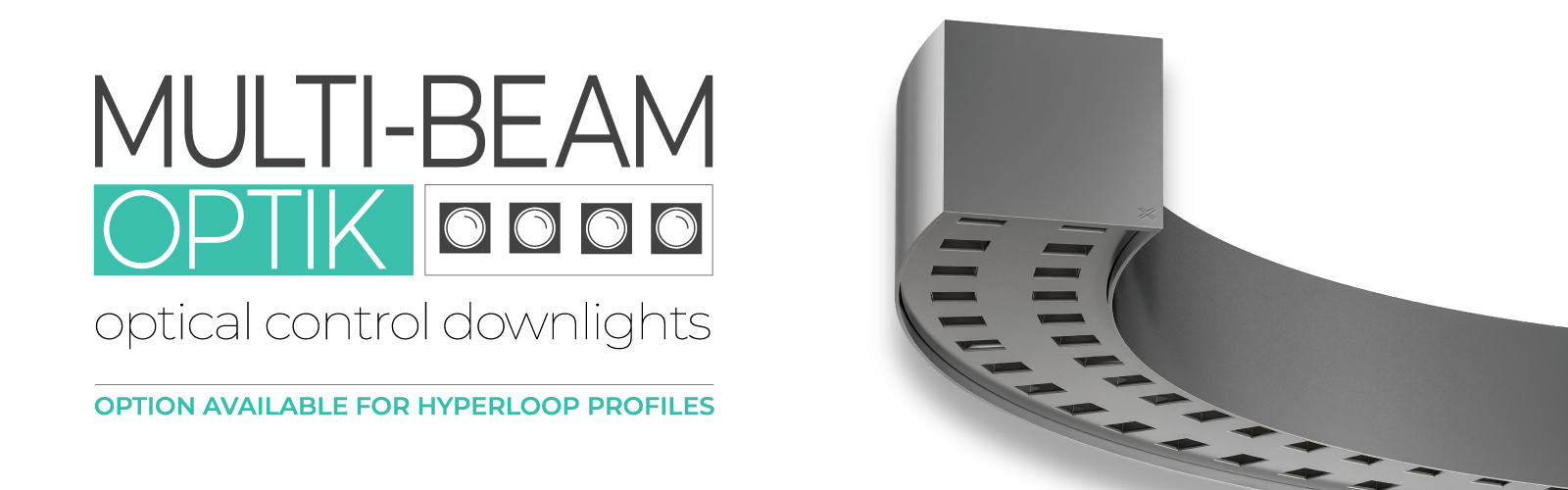

| Diffuser | Frosted acrylic lens / Multi-Beam OPTIK Downlight available in 10° / 18° Spot Beams, 30° Medium Beam, 40° / 50° / 60° Wide Beams | ||||
| Accessories | Various connection shapes available | ||||
| Connections | Speed connect joining with polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable rollerball suspension / rod suspension | ||||
| Bend Radii | 430R / 830R / 1230R as standard with custom radii available | ||||
| Joiner options | Lit corner 90° / Cross 90° / Tee 90° / Straight 180° join | ||||
| Mounting | Field adjustable rollerball suspension / rod suspension | ||||
| Operating temperatures | Proformax = -25°C to 35°C (-13°F to 95°F) | ||||
| Environment | Dry indoor applications only | ||||
| Minimum length adjustment | Proformax LO / HO = 50mm, Proformax S = 140mm | ||||
| LED Board types | Proformax LO / HO LED boards in 50mm / 280mm / 560mm lengths, Zhaga compatible. Proformax S LED boards in 140mm / 280mm / 560mm Zhaga compatible | ||||
| Configurations | Up / Down / Up and Down | ||||
For photometric data and specification information refer to xerolighting.com/xconfigurator
Standard Bend Options
(Other custom options available)
Standard Connections
(Other custom options available)
Examples of possible shapes using standard
straights, bends & Joiners
The HyperLoop series has a wide selection of standard connection options from straight, mitre bends, curves Y and V bends that creates a myriad of different shapes.
HyperLoop installation template
Xero HyperLoop profiles come with the mounting templates that allow for easy installation.
The template should be assembled on the floor and the position in the room checked against the reflected
ceiling plan then suspension positions should be laser transferred to the ceiling for accurate positioning before
installing. Individual sections ‘click’ together to create an exact template of the actual luminaire.
Ease for installation is just another standard from the leader in linear lighting innovation.
Shape illustrated is an example only.
Templates are supplied on projects that
contain arc bends for individual designs and shapes
