Orbit Series
DOWNLOADBROCHURE
SPECIFICATIONS

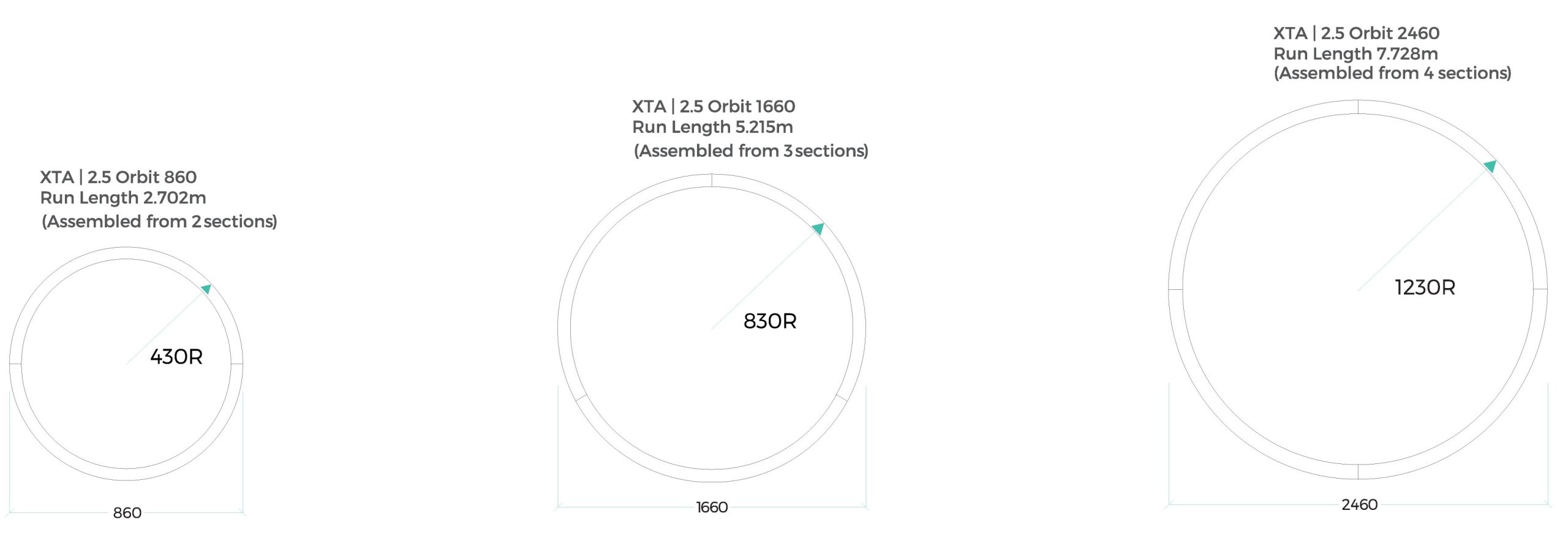

Model and dimensions ORBIT 2.5 Series for Beam Recessed and Slot

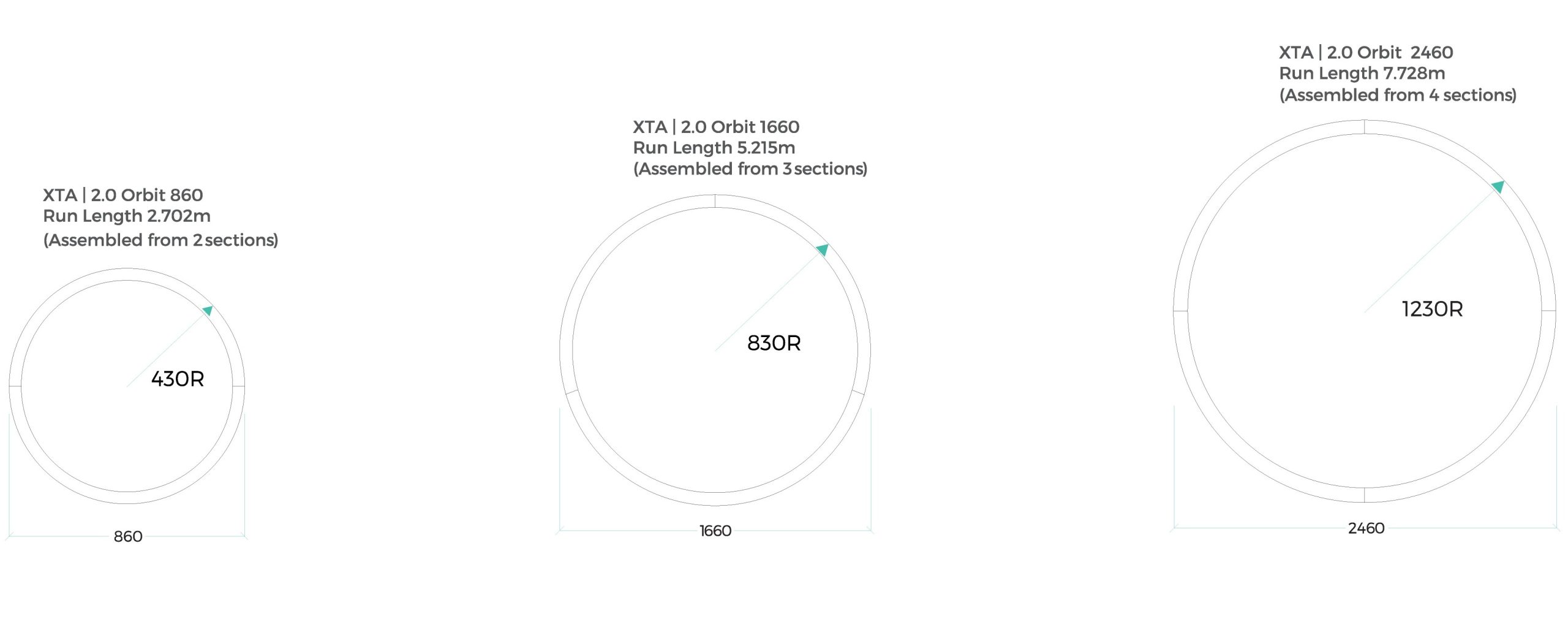

Model and dimensions ORBIT 2.0 Series for Recessed and Slot

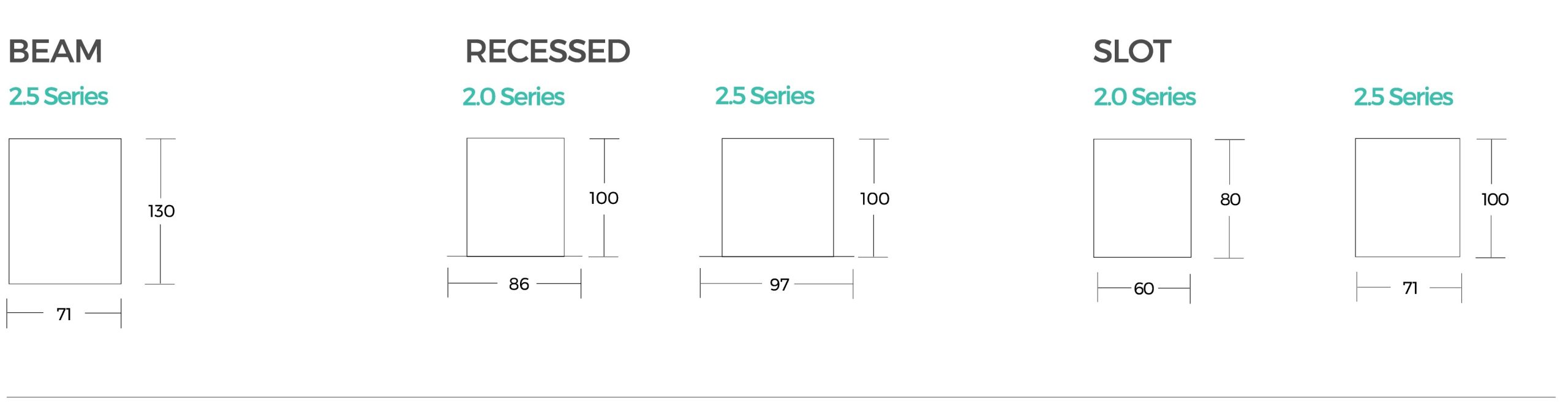

PROFILE DIMENSIONS
DATA TABLE
| BEAM | RECESSED | SLOT | |||
| Optic Module LED Engine |
Proformax S | CRI | 90+ | ||
| Lumen Maintenance | 82,000 Hours | ||||
| Warranty | 7 years | ||||
| Dimensions | 2.0 series | N/A | 86 x 100mm | 60 x 80mm | |
| 2.5 series | 71 x 130mm | 97 x 100mm | 71 x 100mm | ||
| Weight per (LM) | 2.0 series | N/A | 3.7kg per metre | 3.5kg per metre | |
| 2.5 series | 4.6kg per metre | 4.0kg per metre | 4.2kg per metre | ||
| IP Rating | IP20 (dry indoor application only) / Optional IP55 available | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Surface mounting / Wire suspension | Gyprock clips | Surface mounting / Wire suspension | ||
| Diffusers | Plexiglass | ||||
| Colours | Textured white / Textured black / Silver powder-coat | ||||
| Control | Fixed output / Dali – 2 / 0-10y (US market only) | ||||
| Orbit profiles are pre-configured versions of the loop range. To view on the Xero website go to xerolighting.com/orbit-series/ For more information on customisable loop products please visit xerolighting.com/contact to speak with a local Specification Representative. |
|||||
| Photometrics Please visit xconfigurator.xerolighting.com for the latest and most up to date IES photometric files |
|||||

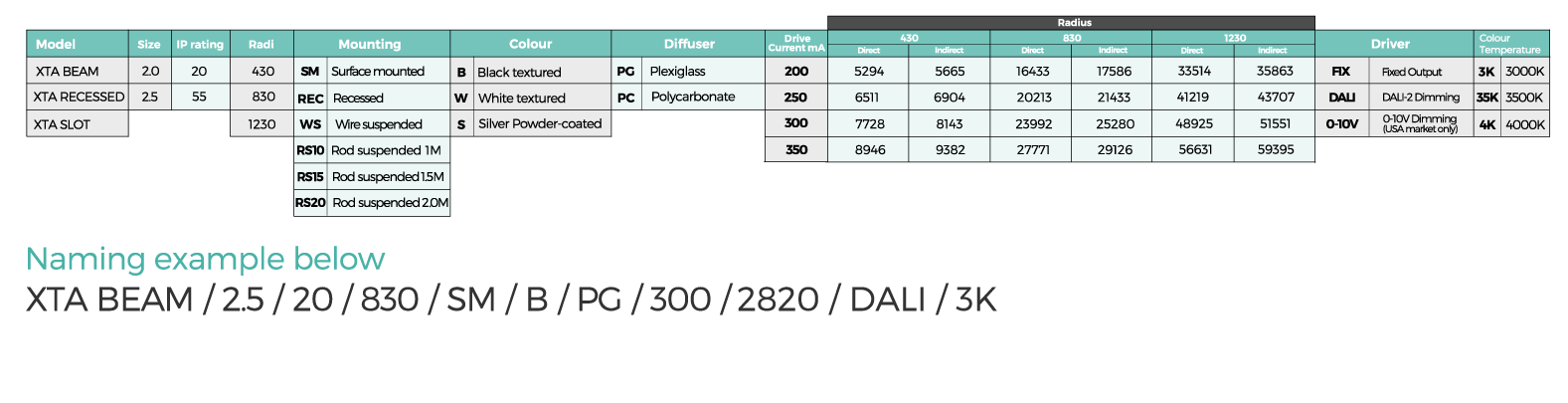

SPECIFYING YOUR ORBIT RING
MOUNTING OPTIONS
DOWNLOAD
INSTRUCTION SHEETS
